Carbine Snap Hook w/Eyelet, DIN5299 Form A.
It is safer by adding a small O ring on the small end of hook to keep the attachments (ropes or chains) in small space.
While using this snap hook, it’s quick, easy and saves time.
| Technical Notes | DIN5299 Form A |
| Material | Carbon steel |
| Finish | Zinc plated, Hot dipped galvanized |
| Size | 4*40mm -12*140mm |

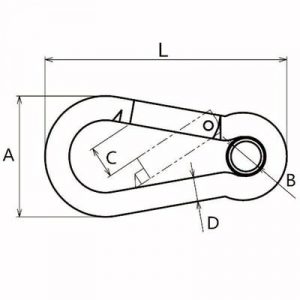

Specification- Carbine Snap Hook w/Eyelet, DIN5299 Form A
| Size | A | B | C | D | L | W.L.L | N.W. |
| mm | mm | mm | mm | mm | mm | lbs | kgs/100pcs |
| 4X40 | 20 | 5 | 6 | 4 | 40 | 100 | 0.85 |
| 5×50 | 25 | 5 | 7 | 5 | 50 | 160 | 1.8 |
| 6×60 | 30 | 5 | 7 | 6 | 60 | 260 | 3 |
| 7×70 | 35 | 7 | 10 | 7 | 70 | 335 | 5 |
| 8×80 | 40 | 10 | 11 | 8 | 80 | 400 | 7 |
| 9×90 | 45 | 10 | 11 | 9 | 90 | 500 | 9.8 |
| 10×100 | 50 | 13 | 12 | 10 | 100 | 650 | 14.2 |
| 11×120 | 57 | 13 | 19 | 11 | 120 | 700 | 21 |
| 12×140 | 67 | 15 | 20 | 12 | 140 | 800 | 27.5 |
| 13×160 | 74 | 17 | 29 | 13 | 160 | 1300 | 35.8 |
