320C Carbon Steel Eye Hook with Latch Grade 43.
It is designed for attaching to the end of wire rope sling with a safety latch, to lift objects quickly by crane and land them securely without the use of shackle.
Do not exceed the WLL.
The latch is only designed to retain sling and rigging attachment.
The latch must not support the load.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Material | Superior Carbon Steel |
| Safety Factor | 5:1 |
| Processing | Body: Drop Forged / Quenched and Tempered Latch: Stamping |
| Surface Finished | Body: Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color Latch: Electric Galvanized / Self-Color |
| Origin | China |

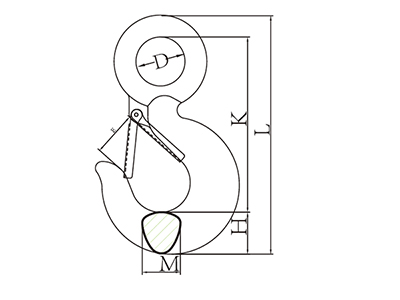

| Weight (KG) | Carbon steel | D±0.6(mm) | E±2(mm) | H±1.5(mm) | K±2.5(mm) | M±5(mm) | L±3(mm) | |
| WLL(ton) | B.L.(ton) | |||||||
| 0.21 | 0.5 | 2.5 | 16.5 | 19 | 17 | 72 | 16 | 97 |
| 0.28 | 0.75 | 3.75 | 19 | 22 | 19 | 82 | 16 | 110 |
| 0.4 | 1 | 5 | 23 | 23 | 21 | 93.5 | 17.5 | 125 |
| 0.65 | 1.5 | 7.5 | 28 | 24 | 26 | 103 | 21 | 140.5 |
| 0.81 | 2 | 10 | 31 | 27.5 | 28 | 119 | 23 | 162 |
| 1.75 | 3 | 15 | 39 | 33 | 37 | 146 | 30 | 201 |
| 3.77 | 5 | 25 | 51 | 40 | 46.5 | 186.5 | 38 | 256 |
| 6.8 | 7.5 | 37.5 | 62 | 51 | 57 | 231.5 | 46 | 317 |
| 9.96 | 10 | 50 | 73 | 57 | 70 | 260 | 55 | 360 |
| 15.33 | 15 | 75 | 89 | 75 | 76 | 318 | 68.5 | 434 |
| 27.2 | 20 | 100 | 90 | 82 | 91 | 360 | 70 | 495.5 |
