Clevis Grab Hook Grade 43 High Test.
Also called as High Test Clevis Grab Hook.
This type hook is designed to be used with Grade 43 or Grade 30 chain.
High Test Clevis Grab Hook has a narrow throat allowing it to grab a link of the chain and prevent it from slipping off.
| Technical Notes | Conform to U.S. Federal Specification |
| Material | Superior Carbon Steel |
| Safety Factor | 4:1 |
| Processing | Forged / Quenched and Tempered |
| Surface Finished | Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 5/8″ , 3/4″ |
| Tips | Not to be used for overhead lifting |

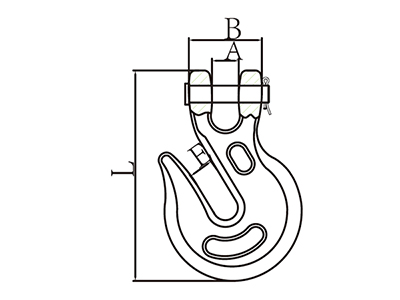

| Weight (lbs) | WLL (lbs) | A±0.5 | B±1 | E±0.5 | L±1 |
| G43 | mm | ||||
| 0.36 | 2600 | 8.5 | 25 | 9.2 | 78.5 |
| 0.62 | 3900 | 10 | 30.5 | 11 | 93 |
| 1.00 | 5400 | 13 | 35 | 12.7 | 114.5 |
| 1.5 | 7200 | 17 | 42 | 14.5 | 126 |
| 2.22 | 9200 | 19 | 47 | 17 | 144 |
| 4.41 | 13000 | 23 | 56 | 20 | 177 |
| 6.50 | 20200 | 24 | 66.5 | 24 | 207.5 |
