Clevis Slip Hook Grade 43.
Also called as High Test Clevis Slip Hook.
Made of superior carbon steel, this type hook is designed to allow chain to slip through the hook.
It is commonly used for load securement with tie-down chains.
Clevis hook can be use in combination with various grades of chain including Grade 30, 43, 70 and 80.
*Not suitable for overhead lifting or hoisting.
| Technical Notes | Conform to U.S. Federal Specification |
| Material | Superior Carbon Steel |
| Safety Factor | 4:1 |
| Processing | Drop Forged / Quenched and Tempered |
| Surface Finished | Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Colored |
| Tips | Not to be used for overhead lifting. |

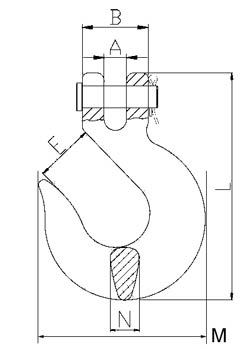

| WEIGHT (lbs) | WLL (lbs) (4:1) | A±2 | B±2 | E±2 | L±3 | N±3 | M±3 |
| 0.55 | 1950 | 10.5 | 27 | 23.5 | 100 | 12.5 | 71 |
| 0.82 | 2875 | 12 | 33 | 26 | 114 | 14.5 | 74 |
| 1.21 | 4000 | 14.5 | 39 | 32 | 132.5 | 17.5 | 93.5 |
| 2.09 | 5000 | 16.5 | 44 | 40 | 147 | 21 | 110.5 |
| 2.99 | 6500 | 19 | 48 | 42.5 | 166 | 23 | 115 |
| 4.85 | 9250 | 18.5 | 58.7 | 51 | 200.5 | 28 | 143 |
| 11.28 | 12500 | 30 | 81 | 64.5 | 257 | 36.6 | 187.5 |
