Clevis Lug Link Grade 70 Australia Standard.
Clevis Lug Link combined with Grade 70 chain is an effective way to restraint heavy load for transport operation.
It is with the benefit of a loop to use as a tow, commonly used for drag chain application.
| Technical Notes | Conform to AS 4344 standard |
| Material | Superior Alloy Steel |
| Processing | Forged |
| Surface Finished | Gold zinc plated,Hot Dip Galvanized |
| Size | 8mm , 10mm , 13mm |
| Origin | China |

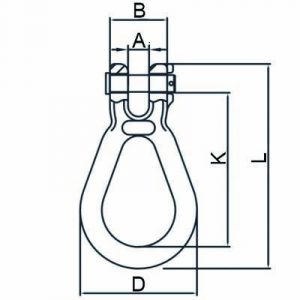

| Size | N.W | L.C. | B.L | B±1.5 | A±0.5 | D±2 | K±2 | L±2 |
| kg | mm | |||||||
| 8mm | 0.555 | 3800 | 7600 | 35 | 140 | 54 | 9.4 | 9 |
| 10mm | 0.63 | 6000 | 12000 | 36 | 142 | 54 | 11 | 11 |
| 13mm | 0.93 | 9000 | 18000 | 48.5 | 203 | 60 | 17 | 17.5 |
