Forged Shoulder Eye Bolt G-277.
It includes 1 nut with UNC thread.
The shoulder of the eye bolt helps maintain the strength of the eye and the shank from bending or deforming, provides more stability to the base of the eye and therefore, makes it the recommended choice for angular loading.
| Technical Notes | Conform to ASME B30.26 |
| Material | Superior Alloy Steel |
| Processing | Drop Forged, Quenched and Tempered |
| Surface Finished | Hot Dipped Galvanized / Zinc Plated |
| Safety Factor | 5:1 |
| Tips | With standard Hot Dipped Galvanized hex nuts. |

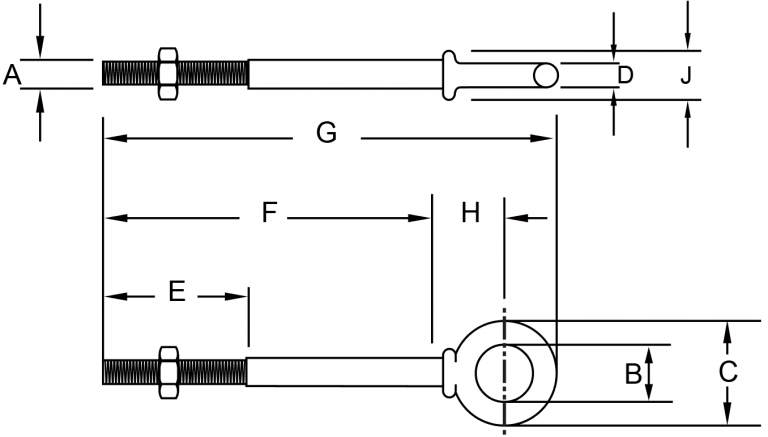

| Shank Dia & Length (in) | WLL (lbs) | Weight per 100pcs (lbs) | Dimensions (in) | ||||||||
| A | B | C | D | E | F | G | H | J | |||
| 1/4 x 2″ | 650 | 6.6 | 0.25 | 0.5 | 0.88 | 0.19 | 1.5 | 2 | 2.94 | 0.5 | 0.47 |
| 1/4 x 4″ | 650 | 9.1 | 0.25 | 0.5 | 0.88 | 0.19 | 2.5 | 4 | 4.94 | 0.5 | 0.47 |
| 5/16 x 2 1/4″ | 1200 | 12.5 | 0.31 | 0.62 | 1.12 | 0.25 | 1.5 | 2.25 | 3.5 | 0.69 | 0.56 |
| 5/16 x 4 1/4″ | 1200 | 18.8 | 0.31 | 0.62 | 1.12 | 0.25 | 2.5 | 4.25 | 5.5 | 0.69 | 0.56 |
| 3/8 x 2 1/2″ | 1550 | 21.4 | 0.38 | 0.75 | 1.38 | 0.31 | 1.5 | 2.5 | 3.97 | 0.78 | 0.66 |
| 3/8 x 4 1/2″ | 1550 | 25.3 | 0.38 | 0.75 | 1.38 | 0.31 | 2.5 | 4.5 | 5.97 | 0.78 | 0.66 |
| 1/2 x 3 1/4″ | 2600 | 42.6 | 0.5 | 1 | 1.75 | 0.38 | 1.5 | 3.25 | 5.12 | 1 | 0.91 |
| 1/2 x 6″ | 2600 | 56.8 | 0.5 | 1 | 1.75 | 0.38 | 3 | 6 | 7.88 | 1 | 0.91 |
| 5/8 x 4″ | 5200 | 68.6 | 0.62 | 1.25 | 2.25 | 0.5 | 2 | 4 | 6.44 | 1.31 | 1.12 |
| 5/8 x 6″ | 5200 | 102.4 | 0.62 | 1.25 | 2.25 | 0.5 | 3 | 6 | 8.44 | 1.31 | 1.12 |
| 3/4 x 4 1/2″ | 7200 | 144.5 | 0.75 | 1.5 | 2.75 | 0.62 | 2 | 4.5 | 7.44 | 1.56 | 1.38 |
| 3/4 x 6″ | 7200 | 167.5 | 0.75 | 1.5 | 2.75 | 0.62 | 3 | 6 | 8.94 | 1.56 | 1.38 |
| 7/8 x 5″ | 10600 | 225 | 0.88 | 1.75 | 3.25 | 0.75 | 2.5 | 5 | 8.46 | 1.84 | 1.56 |
| 1 x 6″ | 13300 | 366.3 | 1 | 2 | 3.75 | 0.88 | 3 | 6 | 9.97 | 2.09 | 1.81 |
| 1 x 9″ | 13300 | 422.5 | 1 | 2 | 3.75 | 0.88 | 4 | 9 | 12.97 | 2.09 | 1.81 |
| 1 1/4 x 8″ | 21000 | 650 | 1.25 | 2.5 | 4.5 | 1 | 4 | 8 | 12.72 | 2.47 | 2.28 |
| 1 1/4 x 12″ | 21000 | 795 | 1.25 | 2.5 | 4.5 | 1 | 4 | 12 | 16.72 | 2.47 | 2.28 |
| 1 1/2 x 15″ | 24000 | 1425 | 1.5 | 3 | 5.5 | 1.25 | 6 | 15 | 20.75 | 3 | 2.75 |
