G-400 Threaded Eye Nut UNC Galvanized.
G400 eye nut is typically used as permanent attachment on devices such as gear box, lifting part, etc.
As one multi-purpose component, eye nut makes equipment more easy to transport.
| Technical Notes | Conform to ASME B30.26 |
| Material | Superior Alloy Steel |
| Processing | Drop Forged, Quenched and Tempered |
| Surface Finished | Hot Dip Galvanized / Electric Galvanized |
| Size | 1/4″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1-1/4″ , 1-3/8″ , 1-1/2″ , 2″ |
| Tips | Tapped with standard UNC class 2 threads after galvanizing. |

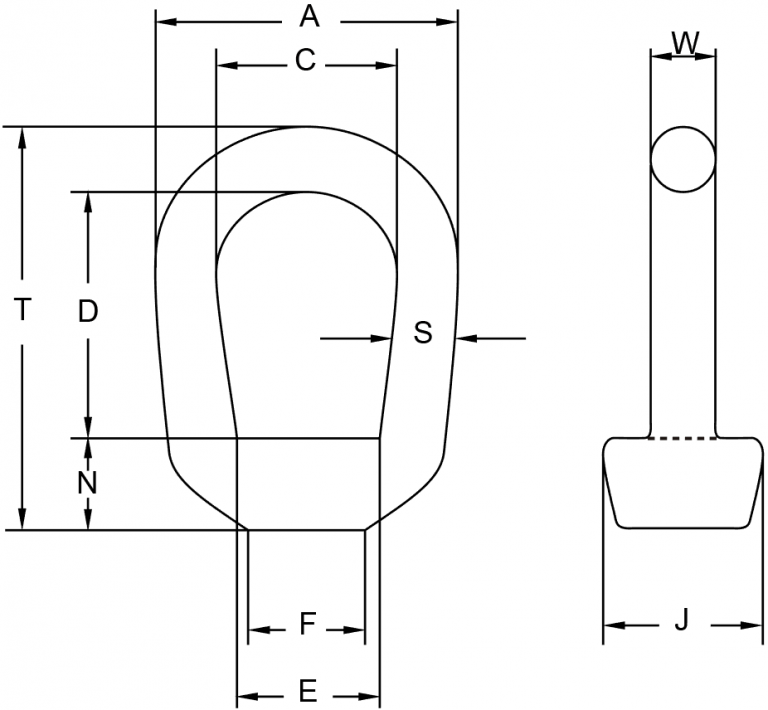

| Size (in) | Working Load Limit (ton) | Weight Each (kg) | Dimensions (mm) | |||||||||
| A | C | D | E | F | J | K | N | T | W | |||
| 1/4 | 0.24 | 0.04 | 31.8 | 19.1 | 25.4 | 19.1 | 12.7 | 17.5 | 16 | 9.65 | 43.7 | 7.85 |
| 3/8 | 0.57 | 0.08 | 41.1 | 25.4 | 30.5 | 21.1 | 14.2 | 20.6 | 22.6 | 12.7 | 53 | 10.4 |
| 1/2 | 1.02 | 0.13 | 51.0 | 31.8 | 36.6 | 27.4 | 20.6 | 25.4 | 27.7 | 15.7 | 63.5 | 12.7 |
| 5/8 | 1.63 | 0.27 | 63.5 | 38.1 | 48.8 | 34.3 | 25.4 | 33.3 | 33.3 | 17.5 | 82.5 | 17.5 |
| 3/4 | 2.36 | 0.45 | 75.0 | 44.5 | 60.5 | 40.4 | 28.4 | 38.1 | 39.9 | 22.4 | 98.8 | 21.3 |
| 7/8 | 3.27 | 0.75 | 89.0 | 51.0 | 66.8 | 49.8 | 35.1 | 47.8 | 45 | 23.9 | 110 | 25.4 |
| 1 | 4.54 | 1.22 | 102 | 57.0 | 77.7 | 56.0 | 39.6 | 54.0 | 51.5 | 27.2 | 127 | 30.2 |
| 1-1/4 | 7.03 | 1.98 | 114 | 63.5 | 88.9 | 62.5 | 47.8 | 60.5 | 57.5 | 31.8 | 147 | 35.1 |
| 1-3/8 | 8.39 | 2.27 | 127 | 70.0 | 102 | 68.5 | 51.0 | 65.0 | 64.5 | 35.1 | 165 | 38.1 |
| 1-1/2 | 10.21 | 3.08 | 143 | 79.0 | 109 | 78.5 | 57.0 | 76.0 | 71.5 | 38.1 | 179 | 42.2 |
| 2 | 18.14 | 6.62 | 181 | 104 | 157 | 104 | 79.5 | 95.5 | 93.5 | 52.3 | 252 | 49.3 |
