Forged Oval Eye Nut.
It can apply to individually or alongside various types of lifting gear in almost any kind of environment.
| Material | Superior Carbon Steel, Alloy Steel |
| Processing | Drop Forged, Quenched and Tempered |
| Surface Finished | Zinc Plated / Hot Dipped Galvanized |
| Origin | China |

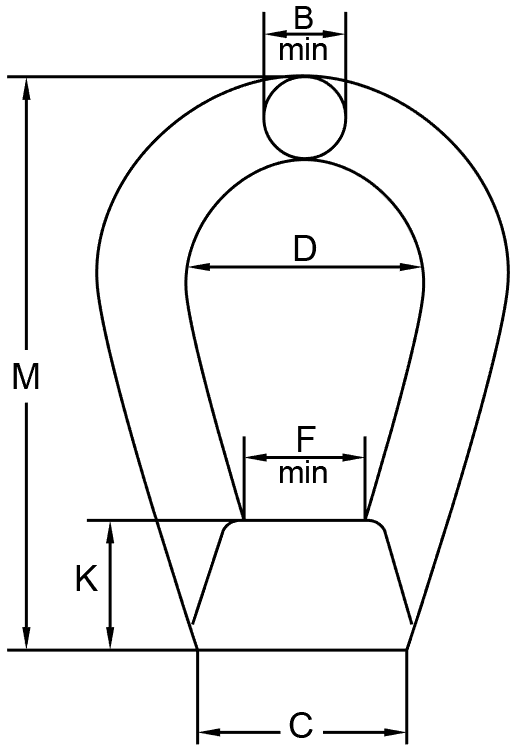

Specification- Forged Oval Eye Nut.
| Thread Size | Weight (kg) | Safe Working Load | B (min) (mm) | C (mm) | F (min) (mm) | K (mm) | M (mm) | D (mm) |
| M10 | 0.3 | 360kg | 12 | 38 | 20 | 18 | 73 | 30 |
| M12 | 0.3 | 530kg | 12 | 38 | 20 | 18 | 73 | 30 |
| M16 | 0.3 | 1010kg | 12 | 38 | 20 | 18 | 73 | 30 |
| M20 | 0.6 | 1580kg | 14 | 45 | 24 | 25 | 102 | 40 |
| M24 | 0.9 | 2280kg | 17 | 50 | 28 | 28 | 124 | 50 |
| M30 | 2.4 | 3650kg | 21 | 70 | 34 | 38 | 146 | 75 |
| M36 | 2.4 | 5340kg | 26 | 70 | 40 | 38 | 146 | 75 |
