Eyebolt with Oval Link BS4278 Table 2.
It is with a male thread plus collar and eye at one end, machined from a solid steel drop forging.
These Eyebolts come attached with an oval link which are manufacture to BS 4279 Table 2.
| Technical Notes | BS4278 table 2 Forgings: 1984 c |
| Surface Finished | Self Colour / Electric Galvanised / Hot Dipped Galvanized |
| Size | M8 , M10 , M12 , M14 , M16 , M18 , M20 , M22 , M24 , M30 , M36 , M42 , M45 , M48 |
| Safety Factor | 5:1 |
| Origin | China |

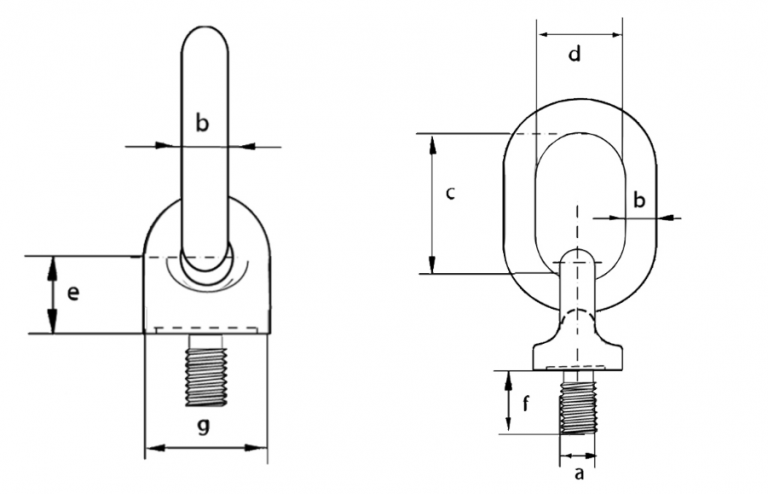

| Size | Safe Working Load | Diameter Thread | Diameter Link | Link Inside Length | Link Inside Width | Base To Centre Height | Thread Length | Diameter Base | Weight Each |
| Ton | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | kg | |
| M8 | 0.1 | 8 | 13 | 53 | 24 | 20 | 27 | 39 | 0.33 |
| M10 | 0.15 | 10 | 13 | 53 | 24 | 20 | 27 | 39 | 0.35 |
| M12 | 0.2 | 12 | 13 | 53 | 24 | 20 | 27 | 39 | 0.36 |
| M14 | 0.3 | 14 | 13 | 53 | 24 | 20 | 27 | 39 | 0.37 |
| M16 | 0.4 | 16 | 13 | 53 | 24 | 20 | 27 | 39 | 0.38 |
| M18 | 0.7 | 18 | 13 | 53 | 24 | 20 | 27 | 39 | 0.39 |
| M20 | 1 | 20 | 13 | 53 | 24 | 20 | 27 | 39 | 0.4 |
| M22 | 1.3 | 22 | 15 | 63 | 29 | 23 | 32 | 47 | 0.65 |
| M24 | 1.6 | 24 | 15 | 63 | 29 | 23 | 32 | 47 | 0.66 |
| M30 | 2.5 | 30 | 19 | 80 | 37 | 30 | 41 | 60 | 1.31 |
| M36 | 4 | 36 | 24 | 102 | 46 | 38 | 52 | 75 | 2.69 |
| M42 | 4.5 | 42 | 30 | 126 | 58 | 47 | 65 | 94 | 5.31 |
| M45 | 5 | 45 | 30 | 126 | 58 | 47 | 65 | 94 | 5.35 |
| M48 | 6.3 | 48 | 30 | 126 | 58 | 47 | 65 | 94 | 5.5 |
