DIN 444 Eye Swing Bolt

Date：2023-12-01 Count：11

Description

DIN 444 Eye Swing Bolt.

DIN 444 Bolt is a bolt with a loop at one end.

This DIN 444 Eye Bolt is used to attach a securing eye to a structure for tie up the rope or cable.

Technical & Feature

Technical Notes	Conform to DIN 444
Material	Superior Carbon Steel
Processing	Forged & Machining
Surface Finished	Zinc Plated / Hot Dipped Galvanized
Tips	Right handed metric coarse thread

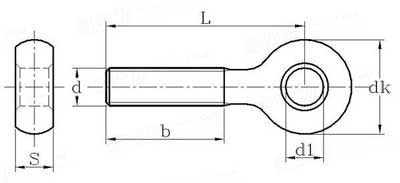

Specification- DIN 444 Eye Swing Bolt

d	p	b			d1		dk				s
Size	Pitch	L≤125	125<L≤200	L>200	Max.	Min.	A (max)	A (min)	B&C (max)	B&C (min)	A (max)	A (min)	B&C (max)	B&C (min)
M5	0.8	16	/	/	5.03	5	12	10.9	12	11.57	8	7.52	6	5.88
M6	1	18	/	/	6.03	6	14	12.9	14	13.57	9	8.52	7	6.85
M8	1.25	22	28	/	8.036	8	18	16.9	18	17.57	11	10.3	9	8.85
M10	1.5	26	32	/	10.036	10	20	18.7	20	19.48	14	13.3	12	11.82
M12	1.75	30	36	49	12.043	12	25	23.7	25	24.48	17	16.3	14	13.82
M16	2	38	44	57	16.043	16	32	30.4	32	31.38	19	18.16	17	16.82
M20	2.5	46	52	65	18.043	18	40	38.4	40	39.38	24	23.16	22	21.79
M24	3	54	60	73	22.052	22	45	43.4	45	44.38	28	27.16	25	24.79
M27	3	60	66	79	24.052	24	50	48.4	50	49.38	30	29.16	27	26.79
M27	3	60	66	79	25.052	25	50	48.4	50	49.38	30	29.16	27	26.79
M30	3.5	66	72	85	27.052	27	55	53.1	55	54.26	34	33	30	29.79
M30	3.5	66	72	85	28.052	28	55	53.1	55	54.26	34	33	30	29.79
M33	3.5	/	78	91	30.052	30	60	58..1	60	59.26	38	37	34	33.75
M36	4	/	84	97	32.062	32	65	63.1	65	64.26	41	40	38	37.75
M36	4	/	84	97	33.062	33	65	63.1	65	64.26	41	40	38	37.75
M39	4	/	90	103	35.062	35	70	68.1	70	69.26	46	45	41	40.57
M39	4	/	90	103	36.062	36	70	68.1	70	69.26	46	45	41	40.75
