JIS1169 Eye Nut.
It can apply to individually or alongside various types of lifting gear in almost any kind of environment.
In a bright zinc plated finish, the lifting eye nut is available in a wide range of sizes.
Used as a lifting or securement point, JIS1169 Eye Nut is among the commonly used rigging fittings.
| Material | Forged steel |
| Processing | Drop Forged / Quenched and Tempered |
| Surface Finished | Self-Colored, Electric Galvanized |
| Size | M8 , M10 , M12 , M16 , M20 , M24 , M30 , M36 , M42 , M48 , M64 , M80 |
| Application | Wire rope fittings, Marine hardware fittings, Lifting and connecting |

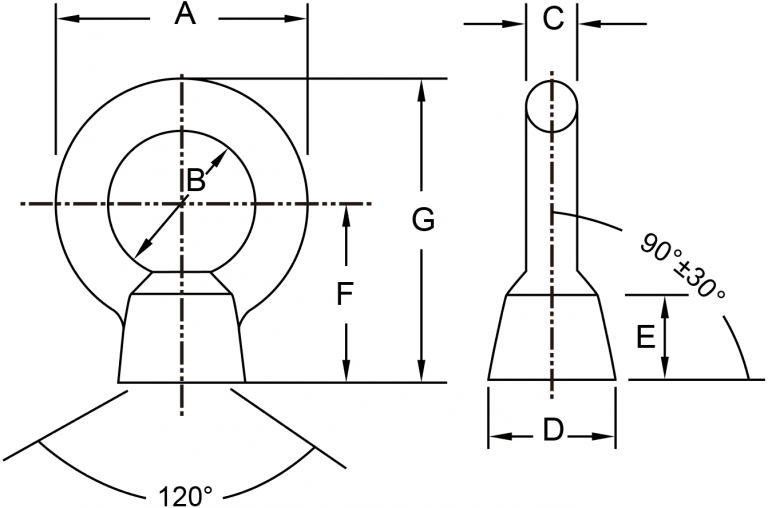

| SIZE | Dimensions (mm) | Safe Working Load Kgf(KN) | |||||||||
| Vertical | 45° | ||||||||||
| A | B | C | D | E | F | G | Kgf | KN | Kgf | KN | |
| M8 | 33 | 20 | 6.3 | 16 | 12 | 23 | 39 | 80 | 0.785 | 80 | 0.785 |
| M10 | 41 | 25 | 8 | 20 | 15 | 28 | 49 | 150 | 1.47 | 150 | 1.47 |
| M12 | 50 | 30 | 10 | 25 | 19 | 36 | 61 | 220 | 2.16 | 220 | 2.16 |
| M16 | 60 | 35 | 13 | 30 | 23 | 42 | 72 | 450 | 4.41 | 450 | 4.41 |
| M20 | 72 | 40 | 16 | 35 | 28 | 50 | 86 | 630 | 6.18 | 630 | 6.18 |
| M24 | 90 | 50 | 20 | 45 | 38 | 66 | 111 | 950 | 9.32 | 950 | 9.32 |
| M30 | 110 | 60 | 25 | 60 | 46 | 80 | 135 | 1500 | 14.7 | 1500 | 14.7 |
| M36 | 133 | 70 | 32 | 70 | 55 | 95 | 162 | 2300 | 22.6 | 2300 | 22.6 |
| M42 | 151 | 80 | 36 | 80 | 64 | 109 | 185 | 3400 | 33.3 | 3400 | 33.3 |
| M48 | 170 | 90 | 40 | 90 | 73 | 123 | 208 | 4500 | 44.1 | 4500 | 44.1 |
| M64 | 210 | 110 | 50 | 110 | 90 | 151 | 256 | 9000 | 88.3 | 9000 | 88.3 |
| M80 | 266 | 140 | 63 | 130 | 108 | 184 | 317 | 15000 | 147 | 15000 | 147 |
