JIS1168 Eye Bolt.
It can apply to individually or alongside various types of lifting gear in almost any kind of environment.
Used as a lifting or securement point, JIS 1168 Eye Bolt is among the commonly used rigging fittings.
| Technical Notes | Conform to JIS Standard |
| Material | Superior Carbon Steel |
| Processing | Drop Forged |
| Surface Finished | Yellow Chromate, Zinc Plated, Hot Dipped Galvanized |
| Size | M8 , M10 , M12 , M16 , M20 , M24 , M30 , M36 , M42 , M48 , M64 , M80 , M90 , M100 |
| Application | Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings. |

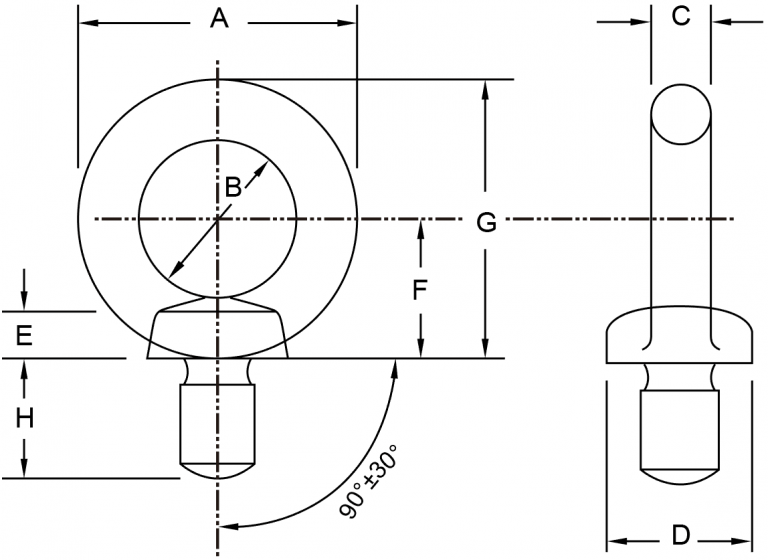

| Size | A | B | C | D | E | F | G | H | SWL(kg/KN) | |||
| Vertical | 45° | |||||||||||
| M8 | 32.6 | 20 | 6.3 | 16 | 5 | 17 | 33.3 | 15 | 80 | 0.785 | 80 | 0.785 |
| M10 | 41 | 25 | 8 | 20 | 7 | 21 | 41.5 | 18 | 150 | 1.47 | 150 | 1.47 |
| M12 | 50 | 30 | 10 | 25 | 9 | 26 | 51 | 22 | 220 | 2.16 | 220 | 2.16 |
| M16 | 60 | 35 | 12.5 | 30 | 11 | 30 | 60 | 27 | 450 | 4.41 | 450 | 4.41 |
| M20 | 72 | 40 | 16 | 35 | 13 | 35 | 71 | 30 | 630 | 6.18 | 630 | 6.18 |
| M24 | 90 | 50 | 20 | 45 | 18 | 45 | 90 | 38 | 950 | 9.32 | 950 | 9.32 |
| M30 | 110 | 60 | 25 | 60 | 22 | 55 | 110 | 45 | 1500 | 14.7 | 1500 | 14.7 |
| M36 | 133 | 70 | 31.5 | 70 | 26 | 65 | 131.5 | 55 | 2300 | 22.6 | 2300 | 22.6 |
| M42 | 151 | 80 | 35.5 | 80 | 30 | 75 | 150.5 | 65 | 3400 | 33.3 | 3400 | 33.3 |
| M48 | 170 | 90 | 40 | 90 | 35 | 85 | 170 | 70 | 4500 | 44.1 | 4500 | 44.1 |
| M64 | 210 | 110 | 50 | 110 | 42 | 105 | 210 | 90 | 9000 | 88.3 | 9000 | 88.3 |
| M80 | 266 | 140 | 63 | 130 | 50 | 130 | 263 | 105 | 15000 | 147 | 15000 | 147 |
| M90 | 302 | 160 | 71 | 150 | 55 | 150 | 301 | 120 | 18000 | 177 | 18000 | 177 |
| M100 | 340 | 180 | 80 | 170 | 60 | 165 | 335 | 130 | 20000 | 196 | 20000 | 196 |
