Collared Eye Bolt BS4278 Table 1.
It is generally used as a removable lifting point also as a termination for chain, wire rope and other assemblies.
This type is among the best eye bolts on the market today.
Collared Eye Bolt BS4278 Table 1 is strong, durable and rust resistant.
| Material | High Tensile Steel 1045 |
| Processing | Forged + Machining + Quenched and Tempered |
| Surface Finished | Self-Color / Electric Galvanized |
| Size | 6mm , 8mm , 10mm , 12mm , 14mm , 16mm , 18mm , 20mm , 22mm , 24mm , 27mm , 30mm , 33mm , 36mm , 39mm , 42mm , 45mm , 48mm , 52mm , 56mm , 64mm |
| Origin | China |

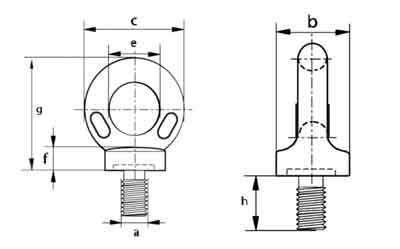

| SWL | Dia.Thread | Dia.Base | Dia.Eye | Dia.Eye | thickness collar | height | Thread length | Weight each |
| outside | inside | |||||||
| a | b | c | e | f | g | h | ||
| ton | mm | kg | ||||||
| 0.1 | 6 | 22 | 33 | 15 | 7 | 36 | 18 | 0.06 |
| 0.15 | 8 | 22 | 33 | 15 | 7 | 36 | 18 | 0.06 |
| 0.25 | 10 | 22 | 33 | 15 | 7 | 36 | 18 | 0.06 |
| 0.4 | 12 | 22 | 33 | 15 | 7 | 36 | 18 | 0.06 |
| 0.5 | 14 | 29 | 44 | 20 | 10 | 48 | 23 | 0.15 |
| 0.8 | 16 | 29 | 44 | 20 | 10 | 48 | 23 | 0.15 |
| 1 | 18 | 36 | 52 | 24 | 12 | 58 | 28 | 0.27 |
| 1.6 | 20 | 40 | 59 | 27 | 14 | 65 | 32 | 0.38 |
| 1.6 | 22 | 45 | 64 | 30 | 14 | 73 | 35 | 0.54 |
| 2.5 | 24 | 52 | 77 | 35 | 17 | 84 | 40 | 0.85 |
| 2.5 | 27 | 58 | 85 | 39 | 20 | 94 | 46 | 1.13 |
| 4 | 30 | 65 | 96 | 44 | 22 | 106 | 51 | 1.62 |
| 4 | 33 | 72 | 106 | 48 | 24 | 117 | 56 | 2.37 |
| 6.3 | 36 | 81 | 118 | 54 | 27 | 131 | 63 | 3.12 |
| 6.3 | 39 | 86 | 123 | 57 | 29 | 137 | 67 | 3.81 |
| 8 | 42 | 101 | 148 | 68 | 34 | 164 | 79 | 6.27 |
| 8 | 45 | 101 | 148 | 68 | 34 | 164 | 79 | 6.45 |
| 10 | 48 | 101 | 148 | 68 | 34 | 164 | 79 | 6.51 |
| 12.5 | 52 | 115 | 168 | 76 | 38 | 186 | 89 | 9.58 |
| 16 | 56 | 128 | 188 | 86 | 43 | 208 | 100 | 12.99 |
| 20 | 64 | 144 | 212 | 96 | 48 | 234 | 112 | 18.2 |
