AS2741 Grade S Screw Pin Dee Shackle.
The letter ‘S’ indicating that it is an Alloy Grade ‘S’ lifting shackle.
AS2741 Grade S Screw Pin Dee Shackle is most commonly used for lifting applications, providing connection to chain, wire rope and other fittings within the marine, agricultural, mining and engineering industries.
| Technical Notes | Conform to AS2741 |
| Material | Body : Superior Carbon Steel Screw Pin :Alloy Steel |
| Safety Factor | 6 : 1 |
| Processing | Body : Drop Forged / Quenched and Tempered Screw Pin:Cold/Hot Forged / Drop Forged / Quenched and Tempered |
| Surface Finished | Body : Hot Dipped Galvanized Screw Pin : Zinc Plated + Powder Coated |
| Size | 6mm , 8mm , 10mm , 11mm , 13mm , 16mm , 19mm , 22mm , 25mm , 29mm , 32mm , 35mm , 38mm , 44mm , 51mm , 57mm , 63mm |
| Tips | Special specification and marks can be made according to customers’ requirements |

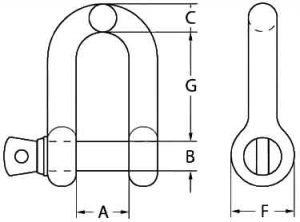

| Size | WLL | Weight | Dimensions | ||||
| (mm) | |||||||
| (mm) | (ton) | (kg) | A | B | C | F | G |
| 6 | 0.5 | 0.05 | 12 | 8 | 6 | 17 | 22 |
| 8 | 0.75 | 0.09 | 13 | 10 | 8 | 21 | 26 |
| 10 | 1 | 0.14 | 17 | 11 | 10 | 25 | 32 |
| 11 | 1.5 | 0.17 | 18 | 13 | 11 | 27 | 37 |
| 13 | 2 | 0.29 | 21 | 16 | 13 | 33 | 41 |
| 16 | 3.2 | 0.63 | 27 | 19 | 16 | 40 | 51 |
| 19 | 4.7 | 1.02 | 32 | 22 | 19 | 48 | 60 |
| 22 | 6.5 | 1.53 | 37 | 25 | 22 | 54 | 71 |
| 25 | 8.5 | 2.41 | 43 | 29 | 25 | 60 | 81 |
| 29 | 9.5 | 3.09 | 46 | 32 | 29 | 67 | 90 |
| 32 | 12 | 4.31 | 52 | 35 | 32 | 76 | 100 |
| 35 | 13.5 | 6.01 | 57 | 38 | 35 | 84 | 113 |
| 38 | 17 | 8.03 | 60 | 44 | 38 | 92 | 124 |
| 44 | 25 | 13.79 | 73 | 51 | 44 | 110 | 146 |
| 51 | 35 | 20.42 | 83 | 57 | 51 | 127 | 171 |
| 57 | 42.5 | 26.06 | 95 | 63 | 57 | 143 | 181 |
| 63 | 55 | 38.8 | 105 | 70 | 63 | 152 | 203 |
