US Type Safety Bolt Anchor Shackle G-2130.
It is a tough and durable accessory for nylon slings, as well as polyester slings.
Paired with a lifting sling, they help protect the eyes of the sling from wear and tear on clevis hooks.
This type shackle is used for many applications in industrial, agricultural and marine fields.
| Technical Notes | Conform to U.S. Fed. Spec. (ASME B30.26) |
| Material | Body: Superior Carbon Steel Screw Pin: Alloy Steel / Superior Carbon Steel |
| Safety Factor | 6 : 1 / 4 : 1 |
| Processing | Body: Drop Forged, Quenched and Tempered Screw Pin: Cold/Hot Forged, Drop Forged, Quenched and Tempered |
| Surface Finished | Body: Hot Dipped Galvanized / Zinc Plated Screw Pin: Powder Coated / Zinc Plated |
| Size | 3/16” ,1/4” , 5/16” , 3/8” , 7/16” , 1/2” , 5/8” , 3/4”, 7/8” , 1” , 1-1/8”1/1/4” , 1-3/8” , 1-1/2” , 1-3/4” , 2” , 2-1/2” , 3” , 3-1/2” , 4” |
| Tips | Special specification and marks can be made according to the requirements |

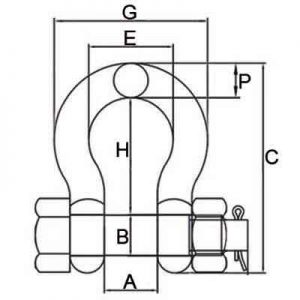

| Size | WLL | Weight | Dimensions (in) | Tolerance +/- | |||||||
| (in) | (t) | (lbs) | A | B | H | E | C | G | P | C | A |
| 3/16 | 1/3 | 0.06 | 0.38 | 0.25 | 0.88 | 0.6 | 1.47 | 0.98 | 0.19 | 0.06 | 0.06 |
| 1/4 | 1/2 | 0.11 | 0.47 | 0.31 | 1.13 | 0.78 | 1.84 | 1.28 | 0.25 | 0.06 | 0.06 |
| 5/16 | 3/4 | 0.22 | 0.53 | 0.38 | 1.22 | 0.84 | 2.09 | 1.47 | 0.31 | 0.06 | 0.06 |
| 3/8 | 1 | 0.33 | 0.66 | 0.44 | 1.44 | 1.03 | 2.49 | 1.78 | 0.38 | 0.13 | 0.06 |
| 7/16 | 1-1/2 | 0.49 | 0.75 | 0.5 | 1.69 | 1.16 | 2.91 | 2.03 | 0.44 | 0.13 | 0.06 |
| 1/2 | 2 | 0.79 | 0.81 | 0.64 | 1.88 | 1.31 | 3.28 | 2.31 | 0.5 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | 1.68 | 1.06 | 0.77 | 2.38 | 1.69 | 4.19 | 2.94 | 0.69 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | 2.72 | 1.25 | 0.89 | 2.81 | 2 | 4.97 | 3.5 | 0.81 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | 3.95 | 1.44 | 1.02 | 3.31 | 2.28 | 5.83 | 4.03 | 0.97 | 0.25 | 0.06 |
| 1 | 8-1/2 | 5.66 | 1.69 | 1.15 | 3.75 | 2.69 | 6.56 | 4.69 | 1.06 | 0.25 | 0.06 |
| 1-1/8 | 9-1/2 | 8.27 | 1.81 | 1.25 | 4.25 | 2.91 | 7.47 | 5.16 | 1.25 | 0.25 | 0.06 |
| 1/1/4 | 12 | 11.71 | 2.03 | 1.4 | 4.69 | 3.25 | 8.25 | 5.75 | 1.38 | 0.25 | 0.06 |
| 1-3/8 | 13-1/2 | 15.83 | 2.25 | 1.53 | 5.25 | 3.63 | 9.16 | 6.38 | 1.5 | 0.25 | 0.13 |
| 1-1/2 | 17 | 19 | 2.38 | 1.66 | 5.75 | 3.88 | 10 | 6.88 | 1.62 | 0.25 | 0.13 |
| 1-3/4 | 25 | 33.91 | 2.88 | 2.04 | 7 | 5 | 12.34 | 8.8 | 2.25 | 0.25 | 0.13 |
| 2 | 35 | 52.25 | 3.25 | 2.3 | 7.75 | 5.75 | 13.68 | 10.15 | 2.4 | 0.25 | 0.13 |
| 2-1/2 | 55 | 98.25 | 4.13 | 2.8 | 10.5 | 7.25 | 17.9 | 12.75 | 3.13 | 0.25 | 0.25 |
| 3 | 85 | 154 | 5 | 3.3 | 13 | 7.88 | 21.5 | 14.62 | 3.62 | 0.25 | 0.25 |
| 3-1/2” | 120 | 265 | 5.25 | 3.76 | 14.63 | 9 | 24.88 | 17.02 | 4.38 | 0.25 | 0.25 |
| 4 | 150 | 338 | 5.5 | 4.26 | 14.5 | 10 | 25.68 | 18 | 4.56 | 0.25 | 0.25 |
