AS2741 Grade S Bow Shackle with Safety Pin.
Suitable for equipment that may vibrate to ensure pin will not fall off during use.
The safety pin allows the pin to rotate during loading conditions.
AS2741 Grade S Bow Shackle with Safety Pin is most commonly used for lifting applications, providing connection to bow, wire rope and other fittings within the marine, agricultural, mining and engineering industries.
The safety pin is commonly powder coated in Yellow, also can be customized painting as per the request.
| Technical Notes | Conform to AS2741 |
| Material | Body: Superior Carbon Steel Screw Pin: Alloy Steel |
| Safety Factor | 6 : 1 |
| Processing | Body: Drop Forged, Quenched and Tempered Screw Pin: Cold/Hot Forged, Drop Forged, Quenched and Tempered |
| Surface Finished | Body: Hot Dipped Galvanized, Powder Coated Screw Pin: Zinc Plated + Powder Coated |
| Size | 13mm , 16mm , 19mm , 22mm , 25mm , 29mm , 32mm , 35mm 38mm , 44mm , 51mm , 57mm , 63mm , 76mm , 89mm , 102mm |
| Tips | Special specification and marks can be made according to customer's requirements |

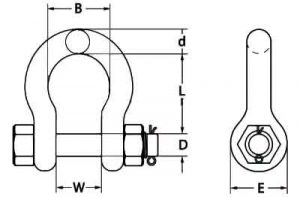

| SIZE | WLL | Wt. | Dimensions | |||||
| B | D | d | e | L | W | |||
| mm | ton | kg | mm | |||||
| 13 | 2 | 0.36 | 33 | 16 | 13 | 33 | 48 | 21 |
| 16 | 3.2 | 0.76 | 43 | 19 | 16 | 40 | 61 | 27 |
| 19 | 4.7 | 1.23 | 51 | 22 | 19 | 48 | 82 | 32 |
| 22 | 6.5 | 1.79 | 58 | 25 | 22 | 54 | 84 | 37 |
| 25 | 8.5 | 2.78 | 68 | 29 | 25 | 60 | 95 | 43 |
| 29 | 9.5 | 3.75 | 74 | 32 | 29 | 67 | 108 | 46 |
| 32 | 12 | 5.31 | 83 | 35 | 32 | 76 | 119 | 52 |
| 35 | 13.5 | 6.98 | 92 | 38 | 35 | 84 | 133 | 57 |
| 38 | 17 | 9.44 | 98 | 44 | 38 | 92 | 146 | 60 |
| 44 | 25 | 15.39 | 127 | 51 | 44 | 110 | 178 | 73 |
| 51 | 35 | 23.71 | 146 | 57 | 51 | 127 | 197 | 83 |
| 57 | 42.5 | 29.01 | 160 | 63 | 57 | 143 | 222 | 95 |
| 63 | 55 | 44.58 | 184 | 70 | 63 | 152 | 267 | 105 |
| 76 | 85 | 69.87 | 200 | 83 | 76 | 165 | 330 | 127 |
| 89 | 120 | 129.31 | 241 | 95 | 89 | 203 | 381 | 153 |
| 102 | 150 | 153.36 | 279 | 108 | 102 | 229 | 432 | 165 |
