Italy Type Hook & Hook Turnbuckle.
Italy Type Hook & Hook Turnbuckle consists of two threaded sections, each end screws into a metal frame, one with a left-hand thread and the other with a right-hand thread.
The tension can be adjusted by rotating the frame, which causes both sides bolts to be screwed in or out, without twisting attached rope or cable.
It is recommended for straight or in-line pull only
Same size with different end fittings are available: Hook & Eye, Eye & Eye.
Technical Notes | Italy Turnbuckle Hook & Hook |
Material | Mild steel, Carton steel, Malleable, Alloy steel, Stainless steel etc. |
Processing | Made by forged or casting |
Galvanic Action | Zinc plated, Hot dip galv. |
Origin | China |

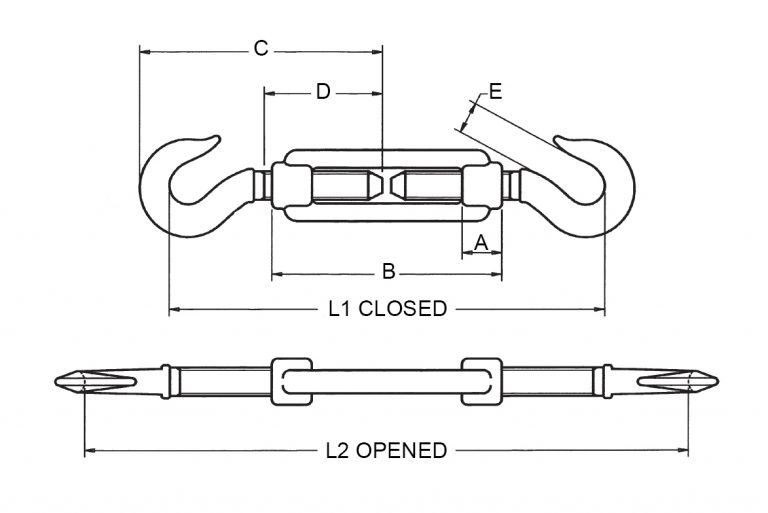

Size | A | B | C | D | E | L1 | L2 | S.W.L. | Weight |
mm | mm | mm | mm | mm | mm | mm | kg | kg | |
M5 | 9 | 79 | 62 | 40 | 6 | 122 | 173 | 50 | 0,05 |
M6 | 10 | 88 | 76 | 50 | 8,5 | 145 | 209 | 75 | 0,07 |
M8 | 12 | 110 | 89 | 52 | 10 | 162 | 245 | 165 | 0,12 |
M10 | 15 | 130 | 103 | 62 | 12 | 204 | 284 | 235 | 0,27 |
M11 | 17,5 | 135 | 112 | 65 | 12,5 | 231 | 320 | 280 | 0,35 |
M12 | 18 | 140 | 121 | 65 | 16 | 236 | 327 | 320 | 0,42 |
M14 | 20 | 170 | 144 | 82 | 16 | 284 | 395 | 420 | 0,62 |
M16 | 22,5 | 190 | 172 | 105 | 16,5 | 315 | 436 | 530 | 0,95 |
M18 | 27 | 200 | 183 | 110 | 17 | 333 | 457 | 630 | 1,3 |
M20 | 30 | 220 | 185 | 110 | 17,5 | 345 | 482 | 730 | 1,54 |
M22 | 33 | 242 | 216 | 125 | 23 | 385 | 507 | 1120 | 2,25 |
M24 | 39 | 255 | 225 | 135 | 23 | 410 | 580 | 1550 | 2,92 |
M27 | 45 | 255 | 250 | 135 | 29 | 445 | 585 | 1870 | 3,87 |
M30 | 45 | 255 | 250 | 145 | 29 | 450 | 595 | 2240 | 4,25 |
M33 | 45 | 255 | 250 | 145 | 29 | 451 | 596 | 2850 | 6,01 |
M36 | 55 | 295 | 284 | 170 | 30 | 519 | 679 | 3530 | 7,81 |
M39 | 63 | 330 | 288 | 170 | 30 | 530 | 706 | 4150 | 9,4 |
