Cast Zinc Hook & Eye Turnbuckle.
It is recommended for straight or in-line pull only, commonly used for adjusting the tension or length of wire rope, aircraft cable, tie rod and other tensioning systems.
Made of superior zinc alloy, this turnbuckle is much more economical.
It consists of a metal frame with right hand thread one end and left hand thread the other end. Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.
Same size with different end fittings are available: Hook & Hook, Eye & Eye.
| Material | Superior zinc alloy |
| Processing | Die casting |
| Surface Finished | Zinc plated |
| Size | 5/32″ , 3/16″ , 7/32″ , 1/4″ , 5/16″ , 3/8″ |
| Origin | China |

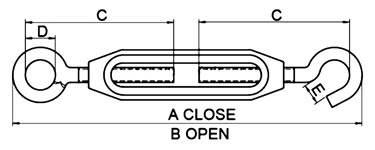

| Size | Overall Length Closed | Overall Length Open | Take Up | Eye I.D. | HookRadius | g/pc |
| 5/32″ | 3-3/8″ | 4-3/4″ | 1-3/8″ | 1/4″ | 1/4″ | 18 |
| 3/16″ | 3-7/8″ | 5-1/2″ | 1-5/8″ | 5/16″ | 5/16″ | 26.5 |
| 7/32″ | 4-3/8″ | 6-1/4″ | 1-7/8″ | 3/8″ | 3/8″ | 48 |
| 1/4″ | 5-1/2″ | 7-3/4″ | 2-1/8″ | 3/8″ | 3/8″ | 61 |
| 5/16″ | 6-3/4″ | 9-3/8″ | 2-5/8″ | 7/16″ | 7/16″ | 105 |
| 3/8″ | 7-3/4″ | 10-1/2″ | 3″ | 1/2″ | 1/2″ | 171 |
