Italy Turnbuckle Hook & Eye.
This Italy Turnbuckle Hook & Eye is recommended for straight or in-line pull only, commonly used for adjusting the tension or length of wire rope, aircraft cable, tie rod and other tensioning systems.
The tension can be adjusted by rotating the frame, which causes both sides bolts to be screwed in or out, without twisting attached rope or cable.
Same size with different end fittings are available: Hook & Hook, Eye & Eye.
| Technical Notes | Conform to Italy Turnbuckle Hook & Eye |
| Material | Mild steel, Carton steel, Malleable, Alloy steel, Stainless steel 316 or 304etc. |
| Processing | Made by forged or casting |
| Galvanic Action | Zinc plated, Hot Dip Galv. |
| Origin | China |

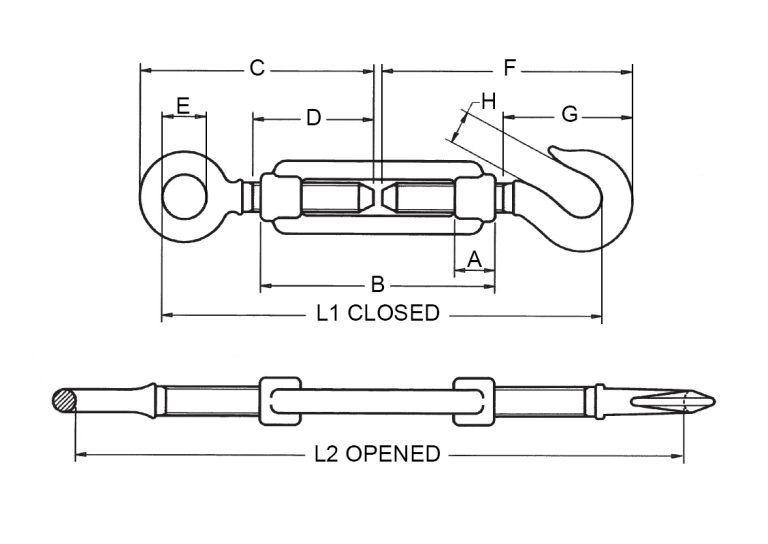

| Size | A | B | C | D | E | F | G | H | L1 | L2 | S.W.L. | Weight |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | kg | |
| M5 | 9 | 79 | 59 | 40 | 8 | 62 | 40 | 6 | 120 | 170 | 50 | 0,05 |
| M6 | 10 | 88 | 74 | 50 | 10 | 76 | 50 | 8,5 | 143 | 205 | 75 | 0,06 |
| M8 | 12 | 110 | 80 | 52 | 11 | 89 | 52 | 10 | 162 | 237 | 165 | 0,12 |
| M10 | 15 | 130 | 97 | 60 | 14 | 103 | 62 | 12 | 196 | 277 | 235 | 0,24 |
| M11 | 17,5 | 135 | 102 | 65 | 15 | 112 | 65 | 12,5 | 207 | 292 | 280 | 0,33 |
| M12 | 18 | 140 | 106 | 67 | 17 | 121 | 65 | 16 | 223 | 310 | 320 | 0,38 |
| M14 | 20 | 170 | 126 | 83 | 18 | 144 | 82 | 16 | 262 | 378 | 420 | 0,56 |
| M16 | 22,5 | 190 | 160 | 97 | 23 | 172 | 105 | 16,5 | 296 | 420 | 530 | 0,94 |
| M18 | 27 | 200 | 178 | 112 | 25 | 183 | 110 | 17 | 326 | 455 | 630 | 1,35 |
| M20 | 30 | 220 | 190 | 116 | 25 | 185 | 110 | 17,5 | 342 | 475 | 730 | 1,48 |
| M22 | 36 | 220 | 200 | 120 | 30 | 216 | 125 | 23 | 330 | 450 | 1120 | 2,13 |
| M24 | 39 | 255 | 210 | 125 | 34 | 225 | 135 | 23 | 405 | 570 | 1550 | 2,84 |
| M27 | 45 | 255 | 236 | 150 | 34 | 250 | 135 | 29 | 445 | 585 | 1870 | 3,89 |
| M30 | 45 | 255 | 240 | 150 | 38 | 250 | 145 | 29 | 450 | 595 | 2240 | 4,15 |
| M33 | 45 | 255 | 242 | 150 | 39 | 250 | 145 | 29 | 451 | 596 | 2850 | 5,88 |
| M36 | 55 | 295 | 276 | 160 | 48 | 284 | 170 | 30 | 516 | 676 | 3530 | 7,53 |
| M39 | 63 | 330 | 276 | 165 | 48 | 288 | 170 | 30 | 519 | 700 | 4150 | 9,82 |
