DIN1478 Closed Body Turnbuckle Hook & Eye.
DIN1478 Closed Body Turnbuckle Hook & Eye is recommended for straight or in-line pull only, commonly used for adjusting the tension or length of wire rope, aircraft cable, tie rod and other tensioning systems.
It consists of two threaded sections, each end screws into a metal frame, one with a left-hand thread and the other with a right-hand thread.
The tension can be adjusted by rotating the frame, which causes both sides bolts to be screwed in or out, without twisting attached rope or cable.
Same size with different end fittings are available: Hook & Hook, Jaw & Jaw, Eye & Eye.
| Technical Notes | Conform to DIN1478 |
| Material | Turnbuckle Body : Cold-drawn Seamless Steel Tube ( C1020 ) Hook & Eye: C1020 / C1045 |
| Surface Finished | Electric Galvanized , Hot Dipped Galvanized |
| Size | M6 , M8 , M10 , M12 , M16 , M20 , M22 , M24 , M30 , M36 |
| Important Notes | Not for Lifting. Only suitable for use in tension |

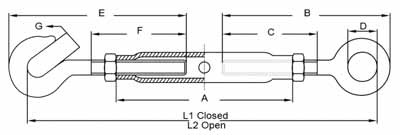

Specification-DIN1478 Closed Body Turnbuckle Hook & Eye
| Size | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | L1(mm) | L2(mm) | S.W.L. | WT |
| kg | kg/pc | ||||||||||
| M 6 | 110 | 74 | 50 | 10 | 76 | 50 | 8,5 | 150 | 240 | 75 | 0,130 |
| M 8 | 110 | 80 | 52 | 11 | 89 | 52 | 10 | 161 | 250 | 165 | 0,150 |
| M 10 | 125 | 97 | 60 | 14 | 103 | 62 | 12 | 187 | 293 | 235 | 0,320 |
| M 12 | 125 | 106 | 67 | 17 | 121 | 65 | 16 | 208 | 313 | 320 | 0,490 |
| M 16 | 170 | 160 | 97 | 23 | 172 | 105 | 16,5 | 299 | 440 | 530 | 1,080 |
| M 20 | 200 | 190 | 116 | 25 | 185 | 110 | 17,5 | 341 | 509 | 730 | 1,440 |
| M 24 | 255 | 210 | 125 | 34 | 225 | 135 | 23 | 393 | 605 | 1550 | 2,650 |
| M 30 | 255 | 240 | 150 | 38 | 250 | 145 | 29 | 440 | 647 | 2240 | 3,870 |
| M 36 | 295 | 276 | 160 | 48 | 284 | 170 | 30 | 502 | 735 | 3530 | 7,540 |
