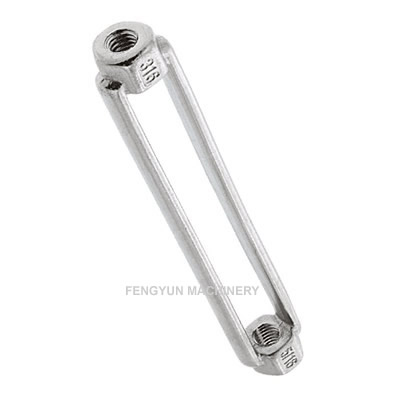

Stainless Steel Turnbuckle Body US Type Drop Forged.
Stainless Steel Turnbuckle Body is used to adjust the tension or length of rope, cable, tie rod and other tension system.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, it is ideal for marine rigging application.
It is easy and fast to connect/disconnect.
| Technical Notes | Conform to US Fed. Spec. |
| Material | Stainless steel 304 or 316 |
| Size | 1/4×4″ , 5/16×4 1/2″ , 3/8×6″ , 1/2×6″ , 1/2×9″ , 5/8×6″ , 3/4×6″ , 1×6″ , 1×12″ , 1 1/4×12″ , 1 1/2×12″ |
| Processing | Drop Forged |
| Tips | Rust/corrosion Resistant |

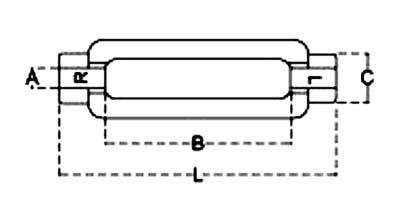

| A (Size) | B (in) | C (in) | L (in) | WLL (lb) | WT (lb) |
| 1/4” | 4.00” | 0.70” | 4.75” | 500 | 0.14 |
| 5/16” | 4.50” | 0.80” | 5.50” | 800 | 0.33 |
| 3/8” | 6.00” | 0.95” | 7.15” | 1,200 | 0.38 |
| 1/2” | 6.00” | 1.15” | 7.50“ | 2,200 | 0.52 |
| 5/8” | 6.00” | 1.35” | 7.80” | 3,500 | 0.90 |
| 3/4” | 6.00” | 1.68” | 8.20” | 5,200 | 1.10 |
| 1” | 6.00” | 2.30” | 9.00” | 8,000 | 2.65 |
| 1” | 12.00” | 2.30“ | 14.80” | 8,000 | 4.15 |
| 1-1/4” | 12.00” | 2.60” | 15.10” | 12,500 | 5.80 |
| 1-1/2” | 12.00” | 3.20” | 15.80” | 17,000 | 9.50 |
