DIN1478 Closed Body Hook & Hook Turnbuckle

Description

DIN1478 Closed Body Hook & Hook Turnbuckle.

Also called as rigging screw turnbuckle hook & hook DIN1478.

DIN1478 Closed Body Hook & Hook Turnbuckle is recommended for straight or in-line pull only, commonly used for adjusting the tension or length of wire rope, aircraft cable, tie rod and other tensioning systems.

It consists of two threaded sections, each end screws into a metal frame, one with a left-hand thread and the other with a right-hand thread.

The tension can be adjusted by rotating the frame, which causes both sides bolts to be screwed in or out, without twisting attached rope or cable.

Same size with different end fittings are available: Jaw & Eye, Jaw & Jaw, Hook & Eye etc.

Technical & Feature

Δ Tips
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end.

Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.

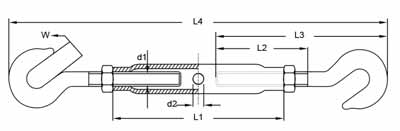

Specification — DIN1478 Closed Body Hook and Hook Turnbuckle
