DIN 5683 Long Link Chain.
Made of superior alloy steel, it is a kind of welded long link chain.
DIN 5683 Long Link Chain is used for engineering, industrial, agricultural and marine applications.
*Not suitable for overload lifting or hoisting.
| Technical Notes | Conform to DIN 5683 |
| Material | Superior Alloy Steel 20MnSi |
| Processing | Welded |
| Surface Finished | Zinc Plated/Selfcolor/Hot Dipped Galvanized |
| Size | 13mm , 16mm , 18mm , 20mm , 23mm , 26mm , 30mm , 33mm , 36mm , 39mm |
| Note | Not for overload lifting. |
| Origin | China |

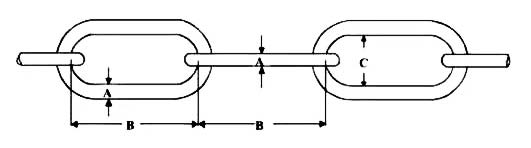

| Size(mm) | Pitch | Width | PL KN Proof Load | BL KN Break Load | Weight (KG) | ||||
| A | Tol | B | Tol | C | Tol | ||||
| 13 | 4/8 | ±0.7 | 36 | ±4 | 18 | ±2 | 110 | 210 | 3.9 |
| 16 | 5/8 | ±0.8 | 144 | ±4 | 56 | ±3 | 32 | 160 | 4.4 |
| 18 | 1”1/16 | ±0.9 | 162 | ±4 | 63 | ±3 | 40 | 200 | 5.6 |
| 20 | 1”3/16 | ±1 | 180 | ±5 | 70 | ±3 | 50 | 250 | 6.9 |
| 23 | 1”5/16 | ±1.2 | 207 | ±5 | 81 | ±4 | 63 | 320 | 9.1 |
| 26 | 1” | ±1.3 | 234 | ±6 | 91 | ±4 | 80 | 400 | 12 |
| 30 | 1”3/16 | ±1.5 | 270 | ±7 | 105 | ±5 | 110 | 560 | 15 |
| 33 | 1”5/16 | ±1.7 | 297 | ±7 | 116 | ±5 | 130 | 670 | 19 |
| 36 | 1”7/16 | ±1.8 | 324 | ±8 | 126 | ±6 | 160 | 800 | 22 |
| 39 | 1”9/16 | ±2 | 351 | ±9 | 137 | ±6 | 190 | 950 | 26 |
