G80 Alloy Lifting Chain EN818-2.
It is a sort of short link welded chain manufactured to meet the European standard EN 818-2.
Made of superior alloy steel, it is of medium tolerance for use in chain slings and for general lifting purpose.
G80 Alloy Lifting Chain EN818-2 used for lifting chain hoist no matter electric hoist or hand hoist.
G80 chain also can be used as assembly with lifting hook and ring to lift heavy weight.
*Can customize the chain according to the detailed requirements.
| Technical Notes | European Type (EN818-2) |
| Material | Superior Alloy Steel |
| Safety Factor | 4 : 1 |
| Processing | Welded |
| Surface Finished | Powder Coated |
| Size | 6mm , 7mm , 8mm , 10mm , 13mm , 16mm , 19mm , 22mm , 26mm , 32mm |
| Tips | Can customize according to the detailed requirements. |
| Origin | China |

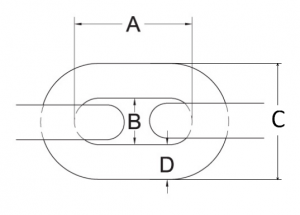

| Size (mm) | WLL (T) | B.L. (T) | A (mm) | B min (mm) | C max (mm) |
| 6±0.24 | 1.12 | 4.48 | 18±0.5 | 7.8 | 22.2 |
| 7±0.28 | 1.5 | 6 | 21±0.6 | 9.1 | 25.9 |
| 8±0.32 | 2 | 8 | 24±0.7 | 10.4 | 29.6 |
| 10±0.4 | 3.15 | 12.6 | 30±0.9 | 13 | 37 |
| 13±0.52 | 5.3 | 21.2 | 39±1.2 | 16.9 | 48.1 |
| 16±0.64 | 8 | 32 | 48±1.4 | 20.8 | 59.2 |
| 18±0.90 | 10 | 40 | 54±1.6 | 23.4 | 66.6 |
| 20±1.00 | 12.5 | 50 | 60±1.8 | 26 | 74 |
| 22±1.10 | 15 | 60 | 66±2.0 | 28.6 | 81.4 |
| 26±1.30 | 21.2 | 84.8 | 78±2.3 | 33.8 | 96.2 |
| 32±1.60 | 31.5 | 126 | 96±2.9 | 41.6 | 118 |
