Stainless Steel Diamond Eye Plate.
This diamond eye plates is designed to screw into all types of panels for different applications.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this diamond pad eye is ideal for marine, industrial, architectural applications.
Suitable for light duty loads.
| Material | Stainless steel AISI 316 / AISI304 |
| Processing | Stamping / Machining / Welding |
| Finish | Highly Polishing |
| Size | 5mm , 6mm , 8mm , 10mm , 12mm |

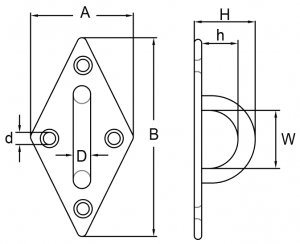

| D (mm) | A (mm) | B (mm) | H (mm) | h (mm) | w (mm) | d (mm) | WT (kg) |
| 5 | 36 | 60 | 23 | 15 | 16 | 4.5 | 0.031 |
| 6 | 40 | 65 | 26 | 17 | 17 | 4.5 | 0.043 |
| 8 | 50 | 80 | 32 | 21 | 21 | 6.2 | 0.077 |
| 10 | 60 | 100 | 36 | 26 | 26 | 6.2 | 0.136 |
| 12 | 80 | 120 | 50 | 38 | 32 | 6.5 | 0.251 |
