Stainless Steel Round Eye Plate.
Stainless Steel Round Eye Plate also called as Round Pad Eye, is made of stainless steel 316 or 304 with superb rust/corrosion resistant performance..
Round eye plate has 2 countersunk holes.
This type eye plate is widely used hardware in marine field such as on boats, on yachts or on decks.
| Material | Stainless steel (AISI 304 / AISI316) |
| Processing | Stamping / Machining / Welding |
| Finish | Highly-Polishing |
| Size | 5mm , 6mm , 8mm |
| Origin | China |

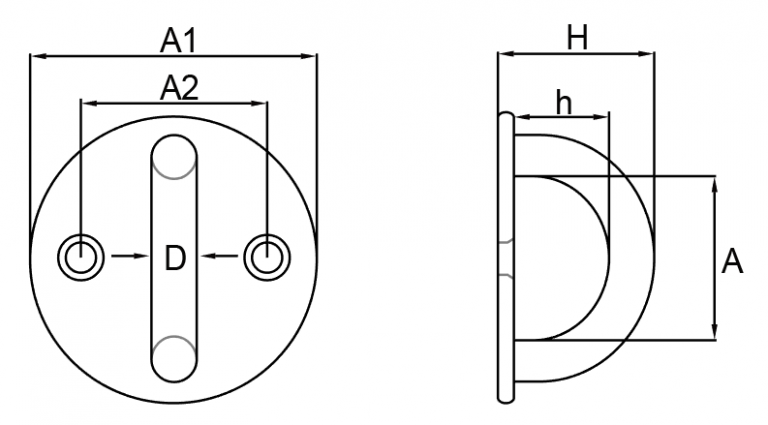

| D (mm) | A1 (mm) | A2 (mm) | H (mm) | h (mm) | A (mm) | WT (kg) |
| 5 | 33 | 18 | 20 | 12 | 13 | 0.023 |
| 6 | 40 | 23 | 26 | 17 | 17 | 0.038 |
| 8 | 50 | 29 | 32 | 21 | 21 | 0.067 |
