Stainless Steel Square Head Pin Bow Shackle.
Stainless Steel Square Head Bow Shackle, also called a "Trawling Shackle" or "Omega Shackle", is made of stainless steel 316 or stainless steel 304.
With the additional element of Mo, the SS316 has better corrosion resistant properties than the common SS304.
Stainless Steel Square Head Pin Bow Shackle is commonly used in the marine industry for trawling purposes during fishing expeditions.
Bow Shackle features a larger bow than that of a Dee shackle which offers a larger surface area for attachments.
| Technical Notes | European Type |
| Material | Stainless Steel AISI 316 / AISI 304 |
| Processing | Forged / Stamping |
| Surface Finished | Highly Polishing / Electric Galv. |
| Size | 4mm , 5mm , 6mm , 8mm , 10mm , 12mm , 14mm , 16mm , 18mm , 20mm , 22mm , 25mm , 28mm , 32mm , 36mm |
| Origin | China |

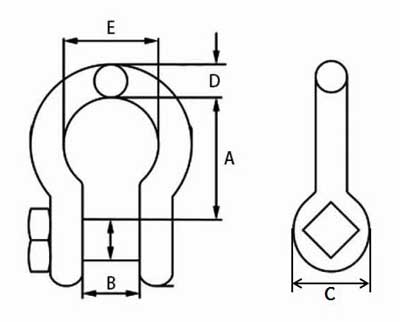

| SIZE | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | WLL (kg) |
| 4mm | 16 | 8 | 8 | 4 | 14 | 50 |
| 5mm | 19 | 10 | 10 | 5 | 16 | 80 |
| 6mm | 25 | 12 | 12 | 6 | 20 | 100 |
| 8mm | 32 | 16 | 16 | 8 | 24 | 200 |
| 10mm | 38 | 20 | 20 | 10 | 28 | 320 |
| 12mm | 48 | 24 | 24 | 12 | 36 | 520 |
| 14mm | 50 | 28 | 28 | 14 | 38 | 700 |
| 16mm | 55 | 32 | 32 | 16 | 10 | 800 |
| 18mm | 62 | 36 | 36 | 18 | 43 | 990 |
| 20mm | 68 | 40 | 40 | 20 | 46 | 1100 |
| 22mm | 82 | 44 | 44 | 22 | 56 | 1500 |
| 25mm | 95 | 50 | 50 | 25 | 68 | 2100 |
| 28mm | 108 | 56 | 56 | 28 | 74 | 3000 |
| 32mm | 120 | 64 | 64 | 32 | 84 | 3500 |
| 36mm | 135 | 72 | 72 | 36 | 92 | 4600 |
