Stainless Steel Square Head Pin D Shackle.
Stainless Steel Square Head Dee Shackle, also called as a Trawling D Shackle, is made of stainless steel 316 or 304.
Stainless Steel Square Head Pin D Shackle has excellent rust/corrosion resistant performance.
It is precision cast with a square head bolt pin.
Stainless Steel Square Head Pin D Shackle is commonly used in the marine industry for trawling purposes during fishing expeditions.
| Technical Notes | European Type |
| Material | Stainless Steel AISI 304 / AISI 316 |
| Processing | Forged / Casting / Stamping |
| Surface Finished | Highly Polishing |
| Size | 1/4” , 5/16” , 3/8” , 15/32” |

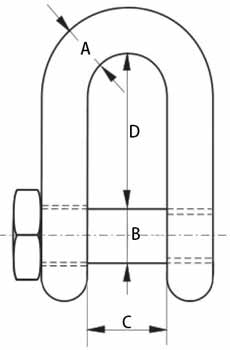

| SIZE | D | C | A | B | MBL |
| MM | KN | ||||
| 4 | 16 | 8 | 4 | 4 | 5.8 |
| 5 | 20 | 10 | 5 | 5 | 9.1 |
| 6 | 24 | 12 | 6 | 6 | 13.2 |
| 8 | 32 | 16 | 8 | 8 | 23.7 |
| 10 | 40 | 20 | 10 | 10 | 37.3 |
| 12 | 48 | 24 | 12 | 12 | 54.9 |
| 14 | 56 | 28 | 14 | 14 | 74.8 |
| 16 | 64 | 32 | 16 | 16 | 97.7 |
| 18 | 72 | 36 | 18 | 18 | 136.1 |
| 20 | 76 | 40 | 20 | 20 | – |
| 22 | 88 | 44 | 22 | 22 | 184.7 |
| 25 | 100 | 50 | 25 | 25 | – |
| 28 | 112 | 56 | 28 | 28 | 223.8 |
| 32 | 128 | 64 | 32 | 32 | 353.6 |
| 36 | 144 | 72 | 36 | 36 | – |
| 38 | 152 | 76 | 38 | 38 | – |
