Stainless Steel Long D Shackle with Screw Pin.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this long D shackle with screw pin is widely used due to the extra space between shackle pin and shackle body.
The shackle has a long body to provide additonal length when needed.
This Stainless Steel Long D Shackle with Screw Pin does not have a captive pin so the bolt screw pin is completely removable from the body.
This type long D shackle with screw pin is used for marine and industrial applications.
Regular sizes available ranging from 4mm to 12mm.
| Technical Notes | Long D shackle |
| Material | Stainless Steel AISI 316/304 |
| Processing | Forged / Machining / Stamping |
| Surface Finished | Highly Polishing / Electric Galvanized |
| Size | 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
| Origin | China |

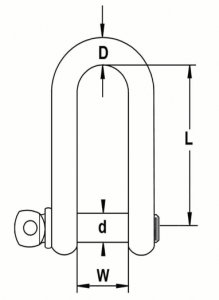

| D | d | L | W | M.B.L. (KN) |
| 4mm | 4mm | 32mm | 8mm | 5.8 |
| 5mm | 5mm | 40mm | 10mm | 9.1 |
| 6mm | 6mm | 48mm | 12mm | 13.2 |
| 8mm | 8mm | 64mm | 16mm | 23.7 |
| 10mm | 10mm | 80mm | 20mm | 37.3 |
| 12mm | 12mm | 96mm | 24mm | 54.9 |
