Stainless Steel Anchor Shackle Oversized Bolt Pin G2130.
This Anchor shackle is the US Type style with an oversized hexagonal nut and cotter pin.
The cotter pin to secure the shackle bolt from loosening for safer overhead lifting, towing and other rigging applications.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
Sizes available as below list.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Material | Stainless Steel AISI 316 / AISI304 |
| Processing | Free Forging |
| Surface Finished | Highly Polishing |
| Size | 3/16” , 1/4” , 5/16” , 3/8” , 7/16” , 1/2” , 5/8” , 3/4” , 7/8” , 1” , 1-1/8” , 1-1/4” |
| Origin | China |

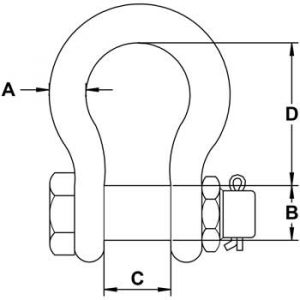

| A | B | C | D | Min.BL |
| inch | KN | |||
| 3/16 | 1/4 | 0.38 | 0.88 | 13.7 |
| 1/4 | 5/16 | 0.47 | 1.13 | 24.4 |
| 5/16 | 3/8 | 0.53 | 1.25 | 38.2 |
| 3/8 | 7/16 | 0.66 | 1.44 | 54.9 |
| 7/16 | 1/2 | 0.75 | 1.69 | 54.9 |
| 1/2 | 5/8 | 0.81 | 1.88 | 97.7 |
| 5/8 | 3/4 | 1.06 | 2.38 | 152.6 |
| 3/4 | 7/8 | 1.25 | 2.81 | 184.7 |
| 7/8 | 1 | 1.44 | 3.31 | 219.7 |
| 1 | 1-1/8 | 1.69 | 3.75 | 278.1 |
| 1-1/8 | 1-1/4 | 1.81 | 4.25 | 390.7 |
| 1-1/4 | 1-3/8 | 2.03 | 4.69 | 494.4 |
