Australia Standard Grade 70 Chain.
Made of superior alloy steel, this type chain is also called as Grade 70 transport chain.
It is designed to stretch for safety, making it the perfect chain for dragging or in conjunction with heavier machinery such as tractors.
This Grade 70 Transport Chain is fitted with grade 70 clevis grab hooks at both ends.
*Not suitable for overhead lifting or hoisting.
| Technical Notes | Conform to AS/NZS 4344 |
| Material | Superior Alloy Steel |
| Processing | Welded |
| Surface Finished | Yellow or Zinc plated |
| Size | 6mm , 7mm , 7.3mm , 8mm , 10mm , 13mm |
| Origin | China |

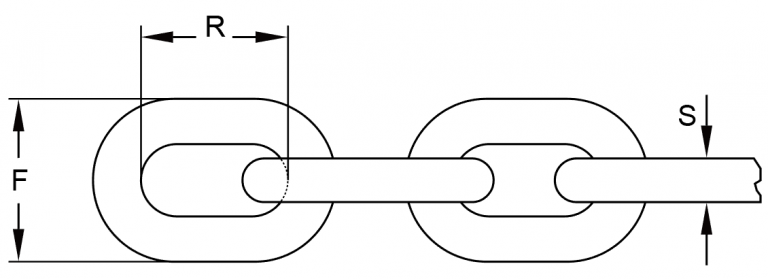

| CHAIN SIZE | LINK DIMENSION | WEIGHT PER M (kg) | BREAKING STRENGTH (kn) | ||
| S (mm) | R (mm) | F (mm) | |||
| 6mm | 6.3 | 18.9 | 22.05 | 0.88 | 44.1 |
| 7mm | 7.1 | 21.3 | 24.85 | 1.12 | 55.9 |
| 7.3mm | 7.3 | 24 | 26.6 | 1.16 | 58.9 |
| 8mm | 8 | 24 | 28 | 1.43 | 73.6 |
| 10mm | 10 | 30 | 35 | 2.23 | 118 |
| 13mm | 13 | 39 | 45.5 | 3.75 | 176 |
1) Never exceed WLL of the chain.
2) Inspect regularly. All chain and chain attachments should be inspect regularly for visible damage, distortion, elongation,
corrosion and wear that can cause breakage or reduce strength.
3) Attachments should have a Working Load Limit at least equal to the chain with which they are use.
4) Avoid shock loads.
5) Not suitable for overhead lifting. Use only Grade 80 Alloy Chain for overhead lifting. Proof Coil Chain, High Test Chain
and Grade 70 Transport Chain are not to be used for overhead lifting.
6) Eliminate all twists and kinks of the chain before using.
7) All dimensions are nominal and all weights are approximate.
