Grade 100 Alloy Lifting Chain EN818-2.
Made of superior alloy steel, this type chain is commonly used for overhead lifting applications in agricultural & industrial fields.
G100 Lifting chain also can be used as assembly with lifting hook and ring to lift heavy weight.
*Can make the non-standard chain according to the detailed requirements.
*Not suitable for overhead lifting, only for lashing.
| Technical Notes | European Type (EN818-2) |
| Material | Super Alloy Steel |
| Safety Factor | 4 : 1 |
| Processing | Welded |
| Surface Finished | Powder Coated |
| Size | 6mm , 7mm , 8mm , 10mm , 13mm , 16mm , 19mm , 22mm , 26mm , 32mm |
| Tips | Can customize according to the detailed requirements. |
| Origin | China |

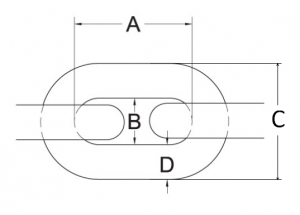

| Size (mm) | WLL (T) | B. L. (T) | A (mm) | B min (mm) | C max (mm) | Weight/m (kg) |
| 6±0.24 | 1.4 | 5.6 | 18±0.5 | 8.7 | 21.6 | 0.96 |
| 7±0.28 | 1.9 | 7.6 | 21±0.6 | 9.5 | 25.2 | 1.26 |
| 8±0.32 | 2.5 | 10 | 24±0.7 | 11 | 28.8 | 1.57 |
| 10±0.40 | 4 | 16 | 30±0.9 | 14 | 36 | 2.46 |
| 13±0.52 | 6.7 | 26.8 | 39±1.2 | 18 | 46.8 | 4.18 |
| 16±0.64 | 10 | 40 | 48±1.4 | 22 | 57.6 | 6.28 |
| 19±0.90 | 14 | 56 | 57±1.6 | 27 | 68.4 | 8.92 |
| 22±1.10 | 19 | 76 | 66±2.0 | 30 | 79.2 | 11.88 |
| 26±1.30 | 21.2 | 84.8 | 78±2.3 | 35 | 96.2 | 16.18 |
| 32±1.60 | 31.5 | 126 | 96±2.9 | 43 | 118 | 24.1 |
1) Do not exceed the WLL (working load limit).
2) Not for overhead lifting, only for lashing.
3) Attachments should have a Working Load Limit at least equal to the chain with which they are used.
4) All chain and chain attachments should be inspected regularly for visible damage, distortion, elongation, corrosion
and wear that can cause breakage or reduce strength.
5) Eliminate all twists and kinks in chain before using.
6) All dimensions are nominal and all weights are approximate.
