Grade U1 U2 U3 Stud Link Anchor Chain Common Link

Date：2023-12-01 Count：14

Description

Grade U1 U2 U3 Stud Link Anchor Chain Common Link.

Also called as offshore mooring chain.

It is used for marine industry, mainly used as marine anchor chain, in mooring systems.

Grade U1 U2 U3 stud link anchor chain made of low carbon alloy steel.

This stud link anchor chain is generally supplied in 27.5m lengths.

Customized assemblies can be manufactured on application. Supplied in standard 27.5m short lengths or to specific customer requirements.

Technical & Feature

Material	Superior low Carbon Alloy Steel
Safety Factor	4:1
Processing	Welded , Heat Treated
Surface Finished	Hot Dip Galvanized , Black Bitumen Coating
Size	12.5mm , 14mm , 16mm , 17.5mm , 19mm , 20.5mm , 22mm , 24mm , 26mm , 28mm , 30mm , 32mm , 34mm , 36mm , 38mm , 40mm , 42mm , 44mm , 46mm , 48mm , 50mm , 52mm , 54mm , 56mm , 58mm , 60mm , 62mm , 64mm , 66mm , 68mm , 70mm , 73mm , 76mm , 78mm , 81mm , 84mm , 87mm , 90mm , 92mm , 95mm , 97mm , 100mm , 102mm , 105mm , 107mm , 111mm , 114mm , 117mm , 120mm , 122mm , 124mm , 127mm , 130mm
Tips	Can customize according to the detailed requirements.
Origin	China

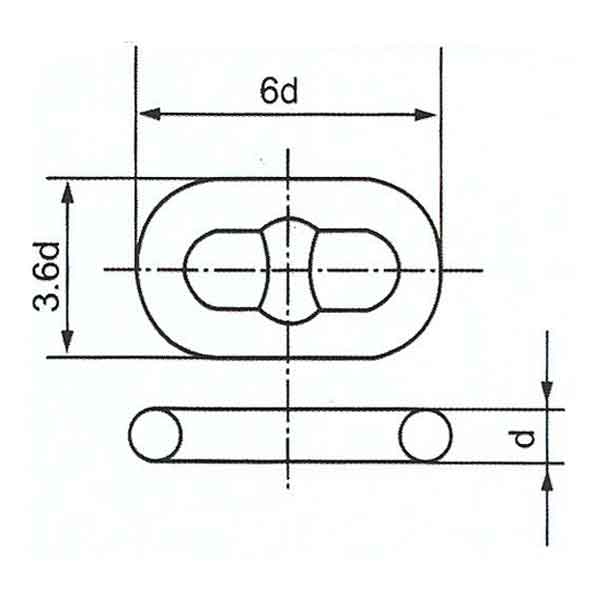

Specification-1-Grade U1 U2 U3 Stud Link Anchor Chain Common Link

d(φ)		AM1		AM2		AM3		APPROX. WEIGHT PER 27.5M (kg)
		U1 STUD LINK CHAIN		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN
		U1 STUD LINK CHAIN		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN
DIAMETER		PROO FLOAD (kn)	BREAKING LOAD (kn)	PROOF LOAD (kn)	BREAKING LOAD (kn)	PROOF LOAD (kn)	BREAKING LOAD (kn)
(in)	(mm)	PROO FLOAD (kn)	BREAKING LOAD (kn)	PROOF LOAD (kn)	BREAKING LOAD (kn)	PROOF LOAD (kn)	BREAKING LOAD (kn)
1/2	12.5	46	66	66	92	92	132	98
9/16	14	58	82	82	116	116	165	119
5/8	16	76	107	107	150	150	216	156
11/16	17.5	89	127	127	179	179	256	186
3/4	19	105	150	150	211	211	301	230
13/16	20.5	123	175	175	244	244	349	260
7/8	22	140	200	200	280	280	401	300
15/16	24	167	237	237	332	332	476	370
1-1/16	26	194	278	278	389	389	556	431
1-1/8	28	225	321	321	449	449	642	496
1-3/16	30	257	368	368	514	514	735	564
1-1/4	32	291	417	417	583	583	833	635
1-5/16	34	328	468	468	655	655	937	712
1-7/16	36	366	523	523	732	732	1050	800
1-1/2	38	406	581	581	812	812	1160	887
1-9/16	40	448	640	640	896	896	1280	1032

Specification-2-Grade U1 U2 U3 Stud Link Anchor Chain Common Link

d(φ)		AM1		AM2		AM3		APPROX. WEIGHT PER 27.5M (kg)
		U1 STUD LINK CHAIN		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN
		U1 STUD LINK CHAIN		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN
DIAMETER		PROOF LOAD (kn)	BREAKING LOAD (kn)	PROOF LOAD (kn)	BREAKING LOAD (kn)	PROOF LOAD (kn)	BREAKING LOAD (kn)
(in)	(mm)	PROOF LOAD (kn)	BREAKING LOAD (kn)	PROOF LOAD (kn)	BREAKING LOAD (kn)	PROOF LOAD (kn)	BREAKING LOAD (kn)
1-5/8	42	492	703	703	981	981	1400	1084
1-3/4	44	538	769	769	1080	1080	1540	1197
1-13/16	46	585	837	837	1170	1170	1680	1310
1-7/8	48	635	908	908	1270	1270	1810	1438
2	50	686	981	981	1370	1370	1960	1546
2-1/16	52	739	1060	1060	1480	1480	2110	1661
2-1/8	54	794	1140	1140	1590	1590	2270	1791
2-3/16	56	851	1220	1220	1710	1710	2430	1926
2-5/16	58	909	1290	1290	1810	1810	2600	2086
2-3/8	60	969	1380	1380	1940	1940	2770	2249
2-7/16	62	1030	1470	1470	2060	2060	2940	2361
2-1/2	64	1100	1560	1560	2190	2190	3130	2516
2-9/16	66	1160	1660	1660	2310	2310	3300	2676
2-11/16	68	1230	1750	1750	2450	2450	3500	2885
2-3/4	70	1290	1840	1840	2580	2580	3690	3010

Specification-3-Grade U1 U2 U3 Stud Link Anchor Chain Common Link

d(φ)	AM2		AM3		APPROX. WEIGHT PER 27.5M (kg)
	U2 STUD LINK CHAIN		U3 STUD LINK CHAIN
	U2 STUD LINK CHAIN		U3 STUD LINK CHAIN
DIAMETER	PROOF LOAD (kn)	BREAKING LOAD (kn)	PROOF LOAD (kn)	BREAKING LOAD (kn)
(mm)	PROOF LOAD (kn)	BREAKING LOAD (kn)	PROOF LOAD (kn)	BREAKING LOAD (kn)
73	1990	2790	2790	3990	3274
76	2150	3010	3010	4300	3548
78	2260	3160	3160	4500	3737
81	2410	3380	3380	4820	4030
84	2580	3610	3610	5160	4334
87	2750	3850	3850	5500	4650
90	2920	4090	4090	5840	4976
92	3040	4260	4260	6080	5119
95	3230	4510	4510	6440	5544
97	3340	4680	4680	6690	5780
100	3530	4940	4940	7060	6143
102	3660	5120	5120	7320	6398
105	3850	5390	5390	7700	6773
107	3980	5570	5570	7960	7033
111	4250	5940	5940	8480	7569
114	4440	6230	6230	8890	7983
117	4650	6510	6510	9300	8409
120	4850	6810	6810	9720	8863
122	5000	7000	7000	9990	9143
124	5140	7200	7200	10280	9598
127	5350	7490	7490	10710	9908
130	5570	7800	7800	11140	10382
