Closed Type Pulley Block Single Sheave With Eye 7411.
Also called as single sheave pulley and eye single sheave block, it is made of superior alloy steel.
Pulley and Block are common lifting mechanisms used for rigging and can be usually used with Wire rope.
| Material | Superior Alloy Steel |
| Surface Finished | Color Painted or Galvanized |
| Size | 2″ , 3″ , 4″ , 5″ , 6″ , 7″ , 8″ , 10″ , 12″ |
| Application | Lifting Equipment |
| Origin | China |

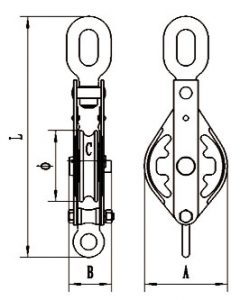

| Size | SWL (Ton) | Dia. | ∅ (mm) | L (mm) | A (mm) | B (mm) | C (mm) | Weight (kg) |
| 2″ | 0.25 | 6mm | 50 | 186 | 58 | 42 | 11 | 0.65 |
| 3″ | 0.5 | 8mm | 71 | 287.5 | 88 | 57 | 10 | 1.4 |
| 4″ | 1 | 10mm | 96 | 327.5 | 112 | 63 | 15 | 2.65 |
| 5″ | 1.5 | 13mm | 121 | 381 | 140 | 68 | 17 | 4.2 |
| 6″ | 2 | 16mm | 148 | 445 | 164 | 76 | 20 | 6.2 |
| 7″ | 3 | 19mm | 173 | 511 | 196 | 84 | 22 | 9.3 |
| 8″ | 4 | 22mm | 200 | 553 | 220 | 89 | 26 | 11.5 |
| 10″ | 5 | 25mm | 250 | 632.5 | 272 | 89 | 28 | 16.5 |
| 12″ | 6 | 28mm | 300 | 705 | 320 | 95 | 28 | 25 |
