Closed Type Pulley Block Double Sheave With Eye 7512.
Also called as lifting pulley, it is made of superior alloy steel.
Pulley and Block are common lifting mechanisms used for rigging and can usually use with wire rope.
It can change direction of pulley, steel rope and can lift high weight load.
They are widely used in installation in construction.
| Material | Superior Alloy Steel |
| Surface Finished | Color Painted or Galvanized |
| Size | 2″ , 3″ , 4″ , 5″ , 6″ , 7″ , 8″ , 10″ , 12″ |
| Application | Lifting Equipment |
| Origin | China |

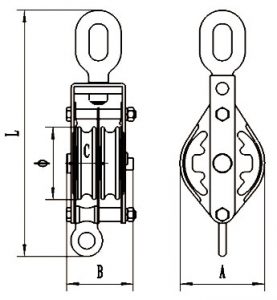

| Size (in) | SWL (Ton) | Dia. | ∅ (mm) | L (mm) | A (mm) | B (mm) | C (mm) | Weight (kg) |
| 2″ | 0.25 | 6mm | 50 | 210 | 58 | 60 | 11 | 1.2 |
| 3″ | 0.5 | 8mm | 71 | 293 | 88 | 82 | 10 | 2.1 |
| 4″ | 1 | 10mm | 96 | 358 | 112 | 93 | 15 | 3.7 |
| 5″ | 1.5 | 13mm | 121 | 410 | 140 | 101 | 17 | 6 |
| 6″ | 2 | 16mm | 148 | 485 | 164 | 116 | 20 | 8.8 |
| 7″ | 3 | 19mm | 173 | 543 | 196 | 130 | 22 | 13.5 |
| 8″ | 4 | 22mm | 200 | 583 | 220 | 137 | 26 | 18 |
| 10″ | 5 | 25mm | 250 | 700 | 272 | 140 | 28 | 26 |
| 12″ | 6 | 28mm | 300 | 740 | 320 | 141 | 28 | 33 |
