G-411 Galvanized Light Duty Wire Rope Thimble.
Made of superior carbon steel, this thimble is installed inside the wire rope loop to protect the cable from pinching and abrading.
Easy, quick and convenient to install. Loop the cable around the outer groove and secure with a ferrule or wire rope clip.
Light Duty Wire Rope Thimble G-411 is good for the light duty rigging applications.
Wire rope thimble not only creates a natural curve to support for the wire rope but also be used with other rigging accessories with a solid wire rope thimble eye to form wire rope sling.
| Technical Notes | U.S. Fed. Spec. |
| Material | Superior Carbon Steel |
| Processing | Machining |
| Surface Finished | Electric Galvanized |
| Size | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1-1/8″-1-1/4″ |
| Tips | To be used for light duty. |
| Origin | China |

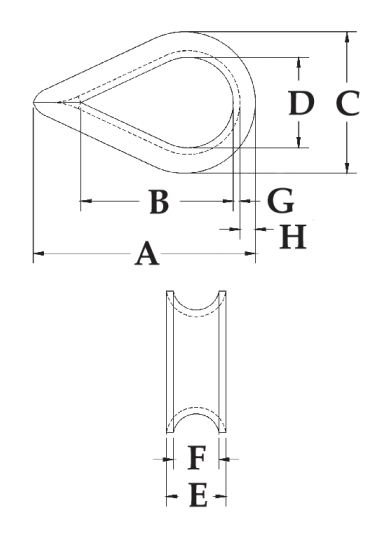

| Rope Dia. (in) | Weight/100 (lbs) | Dimensions (in) | |||||||
| A | B | C | D | E | F | G | H | ||
| 1/8" | 3.5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 |
| 3/16" | 3.5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 |
| 1/4" | 3.5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 |
| 5/16" | 4 | 2.13 | 1.5 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 |
| 3/8" | 6.7 | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 |
| 1/2" | 12.5 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 |
| 5/8" | 34.5 | 3.5 | 2.25 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 |
| 3/4" | 47.1 | 3.75 | 2.5 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 |
| 7/8" | 84.6 | 5 | 3.5 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 |
| 1" | 97.5 | 5.69 | 4.25 | 3.75 | 2.5 | 1.39 | 1.06 | 0.16 | 0.41 |
| 1-1/8" - 1-1/4" | 175 | 6.25 | 4.5 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.5 |
