Wire Rope Thimble JIS Standard.
Made of super carbon steel, this thimble not only creates a natural curve to support for the wire rope but also be used with other rigging accessories with a solid wire rope thimble eye to form wire rope sling.
Compatible with sleeve or wire rope clip, Galvanized Wire Rope Thimble JIS Standard extends the working life of cable or wire rope by protecting against everyday wear.
Various sizes available from 6mm to 50mm.
| Technical Notes | Conform to JIS Standard |
| Material | Superior Carbon Steel |
| Surface Finished | Zinc Plated |
| Size | 6mm , 8mm , 9mm , 10mm , 12mm , 14mm , 16mm , 18mm , 20mm , 22mm , 24mm , 26mm , 28mm , 30mm , 32mm , 34mm , 36mm , 38mm , 40mm , 42mm , 44mm , 46mm , 48mm , 50mm |
| Origin | China |

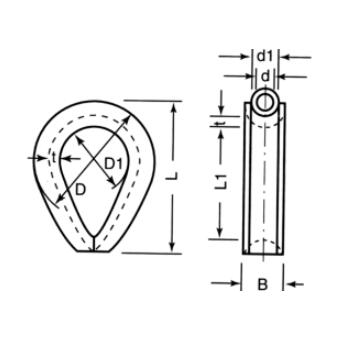

| Size (mm) | d (mm) | B (mm) | D (mm) | D1 (mm) | L1 (mm) | L (mm) | t (mm) |
| 6 | 6 | 8 | 27 | 16 | 26 | 36 | 3 |
| 8 | 8 | 10 | 36 | 22 | 35 | 48 | 4 |
| 9 | 9 | 11 | 40 | 25 | 38 | 51 | 4 |
| 10 | 10 | 13 | 45 | 28 | 44 | 58 | 4 |
| 12 | 12 | 15 | 54 | 34 | 52 | 68 | 5 |
| 14 | 14 | 17 | 61 | 38 | 58 | 78 | 6 |
| 16 | 16 | 20 | 72 | 44 | 68 | 92 | 7 |
| 18 | 18 | 22 | 75 | 48 | 76 | 100 | 7 |
| 20 | 20 | 24 | 86 | 54 | 85 | 112 | 8 |
| 22 | 22 | 27 | 95 | 60 | 92 | 122 | 9 |
| 24 | 24 | 29 | 105 | 65 | 102 | 136 | 10 |
| 26 | 26 | 31 | 110 | 70 | 110 | 144 | 10 |
| 28 | 28 | 33 | 120 | 75 | 120 | 156 | 11 |
| 30 | 30 | 35 | 130 | 80 | 125 | 166 | 12 |
| 32 | 32 | 38 | 140 | 85 | 135 | 180 | 13 |
| 34 | 34 | 40 | 145 | 90 | 140 | 186 | 14 |
| 36 | 36 | 42 | 150 | 95 | 150 | 196 | 14 |
| 38 | 38 | 44 | 160 | 100 | 155 | 205 | 15 |
| 40 | 40 | 46 | 170 | 105 | 165 | 220 | 16 |
| 42 | 42 | 50 | 180 | 110 | 175 | 232 | 17 |
| 44 | 44 | 52 | 190 | 115 | 180 | 242 | 18 |
| 46 | 46 | 54 | 195 | 120 | 190 | 252 | 18 |
| 48 | 48 | 56 | 205 | 125 | 195 | 260 | 19 |
| 50 | 50 | 58 | 215 | 130 | 205 | 274 | 20 |
