Grade 80 Alloy Bolt Type Anchor Bow Shackle.
Also called as G80 safety pin bow shackle.
This type shackle is great to protect lifting sling from damage due to cutting or abrasion, anchor bow accommodates load or pull from multiple angles.
Available in standard sizes as well as customized sizes.
| Grade | 80 |
| Technical Notes | U.S. Federal Specification |
| Safety Factor | 5 : 1 |
| Material | Super Alloy Steel |
| Processing | Drop Forged / Quenched and Tempered |
| Finish | body : Hot Dipped Galvanized Pin : Powder Coating |
| Size | 5/16” , 3/8” , 7/16” , 1/2” , 5/8” , 3/4” , 7/8” , 1” , 1-1/8” , 1-1/4” , 1-3/8” , 1-1/2” , 1-3/4” , 2” |
| Tips | Special specification and marks can be made according to customers' requirements |

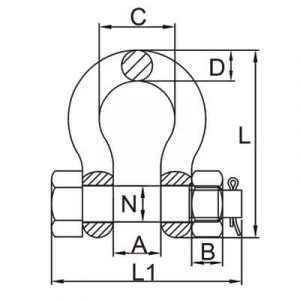

| Size | WLL/T | B.L/T | A±1.5 | C±1.5 | D±1 | L±3 | N | L1±3 | B | N.W./LBS |
| 5/16″ | 1.2 | 6 | 13.5 | 21.3 | 8 | 53 | 9.5 | 50.5 | 8.4 | 0.22 |
| 3/8″ | 1.6 | 8 | 16.8 | 25.9 | 9.7 | 63.2 | 11 | 62 | 10.8 | 0.33 |
| 7/16″ | 2.5 | 12.5 | 19 | 29.5 | 11.2 | 74 | 13 | 70 | 12.8 | 0.49 |
| 1/2″ | 3.3 | 16.5 | 20.6 | 33.3 | 12.7 | 83.3 | 16 | 79.5 | 14.8 | 1.01 |
| 5/8″ | 5 | 25 | 27 | 42.9 | 17.5 | 106.4 | 19 | 101.5 | 18 | 1.6 |
| 3/4″ | 7 | 35 | 32 | 50.8 | 20.6 | 126.2 | 22 | 117.5 | 19.4 | 2.42 |
| 7/8″ | 9.5 | 47.5 | 36.6 | 57.9 | 24.6 | 148 | 25 | 136 | 21.5 | 3.95 |
| 1″ | 12.5 | 62.5 | 43 | 68.3 | 27 | 166.6 | 28 | 153.5 | 23.8 | 5.66 |
| 1-1/8″ | 15 | 75 | 46 | 74 | 31.75 | 190 | 32 | 171.5 | 25.6 | 8.27 |
| 1-1/4″ | 18 | 90 | 51.6 | 82.5 | 35 | 210 | 35 | 192 | 31 | 11.71 |
| 1-3/8″ | 21 | 105 | 57 | 92 | 36 | 232.7 | 38 | 202 | 33.4 | 15.83 |
| 1-1/2″ | 30 | 150 | 60.5 | 98 | 41 | 254 | 42 | 222 | 34 | 20.8 |
| 1-3/4″ | 40 | 200 | 73.2 | 126 | 57.2 | 313.7 | 51 | 278 | 38 | 33.91 |
| 2″ | 55 | 275 | 82.5 | 146 | 61 | 347.5 | 57 | 307 | 45 | 52.25 |
