JIS Standard Screw Pin Chain Shackle without Collar.
Also called as JIS standard commercial type shackle.
The screw pin D shackle JIS type is available in standard sizes as well as customized sizes.
| Material | Carbon Steel |
| Surface Finished | Electric Galvanized |
| Processing | Free Forged/Quenched/Tempered |
| Tips | Special specification and marks can be made according to customers' requirements. |

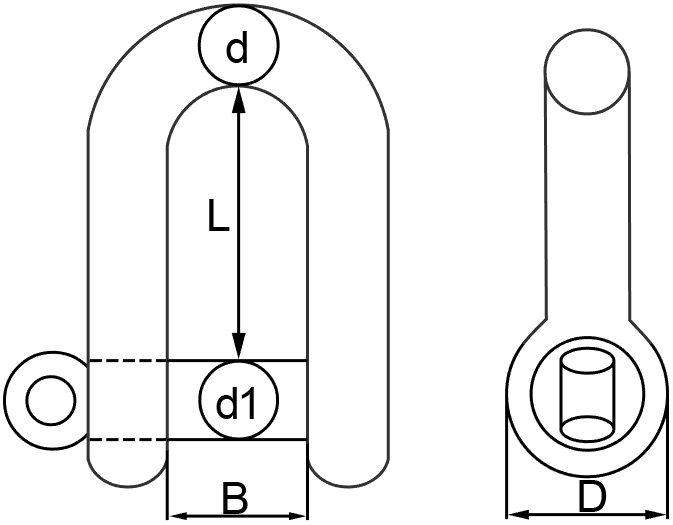

| Size | B | D | L | d1 | SWL | weight | |
| mm | in | mm | mm | mm | mm | ton | kg |
| 4.8 | 3/16 | 10 | 10 | 18.5 | 5 | 0.09 | 0.013 |
| 6 | 1/4 | 12 | 1l | 25 | 6.5 | 0.15 | 0.026 |
| 8 | 5/16 | 14 | 15 | 31 | 8.5 | 0.25 | 0.046 |
| 9 | 3/8 | 18 | 17 | 36 | 10 | 0.4 | 0.07 |
| 12 | 1/2 | 24 | 23 | 46 | 13 | 0.6 | 0.17 |
| 16 | 5/8 | 30 | 32 | 59 | 17 | 0.8 | 0.4 |
| 19 | 1/3 | 36 | 37 | 74 | 20 | 1 | 0.7 |
| 22 | 7/8 | 43 | 43 | 86 | 23 | 1.5 | 1.1 |
| 25 | 1 | 47 | 50 | 95 | 27 | 2 | 1.7 |
| 28 | 1 3/8 | 55 | 56 | 110 | 30 | 2.5 | 2.4 |
| 32 | 2 3/4 | 64 | 64 | 130 | 34 | 3.2 | 3.6 |
| 38 | 5 1/2 | 76 | 76 | 145 | 40 | 4.2 | 6 |
| 44 | 3 1/4 | 80 | 90 | 160 | 47 | 6.5 | 10 |
| 50 | 2 | 100 | 100 | 185 | 53 | 8 | 12 |
| 65 | 10 1/2 | 110 | 130 | 240 | 68 | 15 | 28 |
| 75 | 3 | 120 | 150 | 300 | 78 | 20 | 44 |
