Galvanized / Zinc Plated / Yellow Zinc Plated Wedge Anchor.
Formed with 1 bolt, 1 nut & 1 flat washer, the wedge anchor has a longer thread and is easy to install, usually used in heavy-duty facilities.
To obtain a reliable, huge fastening force, the clamp ring fixed to the gecko is fully expanded. And the expansion clamp ring must not fall off the rod or be twisted in the hole.
It is suitable for concrete and dense stone, metal structure, metal profile, bottom plate, support plate, railing, window, curtain wall, machine, girder, stringer, bracket etc.
| Material | Q195, Q235, SS316, SS304 |
| Processing | Machining |
| Surface Finished | Yellow Zinc Plated / Electric Galvanized / H.D.G / Self-color |
| Packing | Carton / Plastic bag / Nylon bag / Plywood pallet |
| Origin | China |

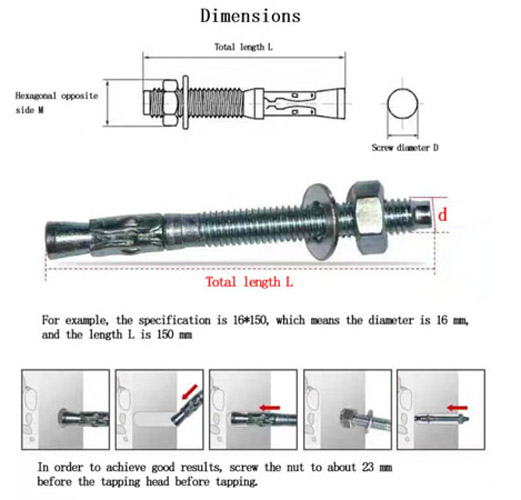

| Unit (MM) | ||||||
| Spec. Size | Overall Length | Screw Dia. | Size of Washer S | Dia. of Hexagonal opposite side M | Drill Hole | WT (KG/100PCS) |
| M6*50 | 50 | 6 | M6*12*1.6 | 10 | 6 | 1.25 |
| M6*60 | 60 | 6 | M6*12*1.6 | 10 | 6 | 1.45 |
| M6*75 | 75 | 6 | M6*12*1.6 | 10 | 6 | 1.67 |
| M6*100 | 100 | 6 | M6*12*1.6 | 10 | 6 | 2.12 |
| M8*60 | 60 | 8 | M8*16*1.6 | 13 | 8 | 2.72 |
| M8*70 | 70 | 8 | M8*16*1.6 | 13 | 8 | 3.04 |
| M8*75 | 75 | 8 | M8*16*1.6 | 13 | 8 | 3.2 |
| M8*80 | 80 | 8 | M8*16*1.6 | 13 | 8 | 3.36 |
| M8*90 | 90 | 8 | M8*16*1.6 | 13 | 8 | 3.68 |
| M8*100 | 100 | 8 | M8*16*1.6 | 13 | 8 | 4 |
| M8*115 | 115 | 8 | M8*16*1.6 | 13 | 8 | 4.48 |
| M10*70 | 70 | 10 | M10*20*2 | 17 | 10 | 4.9 |
| M10*75 | 75 | 10 | M10*20*2 | 17 | 10 | 5.15 |
| M10*80 | 80 | 10 | M10*20*2 | 17 | 10 | 5.4 |
| M10*90 | 90 | 10 | M10*20*2 | 17 | 10 | 5.9 |
| M10*100 | 100 | 10 | M10*20*2 | 17 | 10 | 6.4 |
| M10*120 | 120 | 10 | M10*20*2 | 17 | 10 | 7.4 |
| M12*75 | 75 | 12 | M12*24*2.5 | 19 | 12 | 7.1 |
| M12*100 | 100 | 12 | M12*24*2.5 | 19 | 12 | 9.2 |
| M12*110 | 110 | 12 | M12*24*2.5 | 19 | 12 | 10 |
| M12*115 | 115 | 12 | M12*24*2.5 | 19 | 12 | 10.8 |
| M12*120 | 120 | 12 | M12*24*2.5 | 19 | 12 | 11.2 |
| M12*140 | 140 | 12 | M12*24*2.5 | 19 | 12 | 12.4 |
| M12*150 | 150 | 12 | M12*24*2.5 | 19 | 12 | 13.2 |
| M16*100 | 100 | 16 | M16*30*3 | 24 | 16 | 17.5 |
| M16*120 | 120 | 16 | M16*30*3 | 24 | 16 | 20.4 |
| M16*140 | 140 | 16 | M16*30*3 | 24 | 16 | 22.4 |
| M16*150 | 150 | 16 | M16*30*3 | 24 | 16 | 23.7 |
