Description:

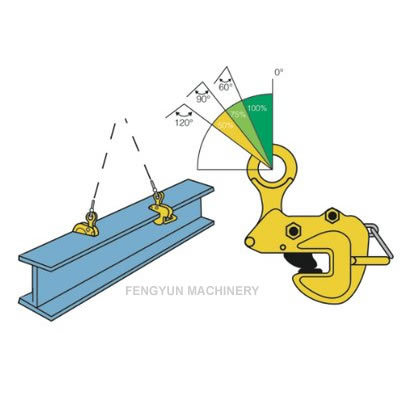

This TMG Horizontal Clamp with Locking Device is primarily used for transporting sheet metal and steel plates in the vertical position.
The spring-load tightening lock mechanism assures a positive initial clamp force and the handle makes it easy & safe to attach and detach the clamp onto.
Feature:
*Working Load Limited (WLL): 0.5 – 5T
*Used for horizontal lifting of steel plates, construction steel parts.
*The clamp is made of high quality carbon steel.
*No collision when the clamp is loaded.
TMG Horizontal Clamp with Locking Device——Specification
| Model | WLL (ton) | Jaw Opening (mm) | Weight (kg) |
| TMS0.5 | 0.5 | 0-25 | 3.2 |
| TMS1 | 1.0 | 0-25 | 5.3 |
| TMS2 | 2.0 | 0-30 | 7.9 |
| TMS3 | 3.0 | 0-38 | 10.5 |
| TMS5 | 5.0 | 0-40 | 27.6 |
