Steel Master Oval Ring Link.
Also called as master link welded.
It is made of superior mild steel with powder coated.
Master oval link is an optimum design for sling construction, also ideal for use with crane hooks, since the depth of a crane hook is normally bigger than the width.
| Material | Superior Mild Steel |
| Safety Factor | 5 : 1 |
| Processing | Welded |
| Surface Finished | Powder Coated |
| W.L.L. | 1T , 1.7T , 3.2T , 4.6T , 5.8T , 7.3T , 12.7T , 13.5T , 15T |
| Tips | Can customize according to the detailed requirements. |

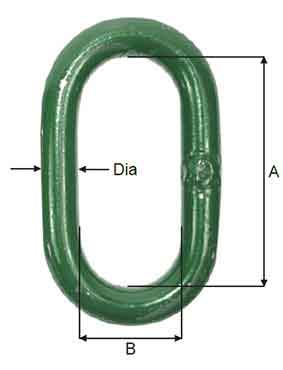

| Dia. (mm) | WLL (5:1, ton) | A (mm) | B (mm) | Weight (kg) |
| 12 | 1 | 70 | 30 | 0.2 |
| 16 | 1.7 | 85 | 35 | 0.4 |
| 19 | 3.2 | 110 | 45 | 0.7 |
| 22 | 4.6 | 120 | 50 | 1.1 |
| 25 | 5.8 | 130 | 50 | 1.5 |
| 28 | 7.3 | 150 | 60 | 2.1 |
| 32 | 12.7 | 150 | 60 | 2.8 |
| 35 | 13.5 | 160 | 75 | 3.2 |
| 38 | 15 | 150 | 60 | 4.2 |
