Stainless Steel Viking G Hook.
Also called as Stainless Steel Boss G Hook or Trawl Hook.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
This G hook can be used with sling and G80 chain to meet EN818-2 standards.
Stainless Steel Viking G Hooks are suitable for all kinds of engineering lifting machinery, mining equipment, port railway loading and unloading, forestry machinery, land transportation and marine.
| Material | Stainless Steel AISI 316 or AISI 304 |
| Safety Factor | 5 : 1 |
| Processing | Cast |
| Surface Finished | Highly Polishing |
| WLL | 3T/6T |
| Tips | Can customize according to detailed requirements. |
| Note | Never exceed working load limit |

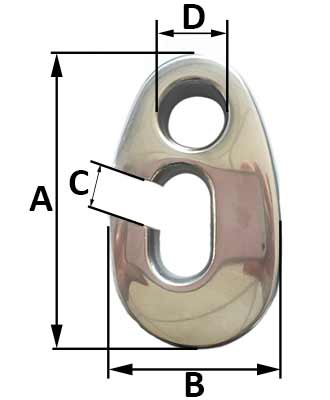

| WLL (5:1, ton) | Thickness (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Weight (kg) |
| 3.0 | 22~30 | 115 | 70 | 17 | 24 | 0.90 |
| 6.0 | 40 | 178 | 107.17 | 25 | 37.35 | 2.9 |
