Grade 100 Alloy Lifting Chain EN818-2.
Made of superior alloy steel, this type chain is commonly used for overhead lifting applications in agricultural & industrial fields.
G100 Lifting chain also can be used as assembly with lifting hook and ring to lift heavy weight.
*Can make the non-standard chain according to the detailed requirements.
| Technical Notes | European Type (EN818-2) |
| Material | Superior Alloy Steel |
| Safety Factor | 4 : 1 |
| Processing | Welded |
| Surface Finished | Powder Coated |
| Size | 6mm , 7mm , 8mm , 10mm , 13mm , 16mm , 19mm , 22mm , 26mm , 32mm |
| Tips | Can customize according to the detailed requirements |
| Origin | China |

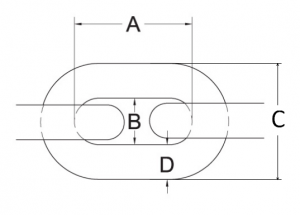

| Size (mm) | WLL (T) | B. L. (T) | A (mm) | B min (mm) | C max (mm) | Weight/m (KG) |
| 6±0.24 | 1.4 | 5.6 | 18±0.5 | 8.7 | 21.6 | 0.96 |
| 7±0.28 | 1.9 | 7.6 | 21±0.6 | 9.5 | 25.2 | 1.26 |
| 8±0.32 | 2.5 | 10 | 24±0.7 | 11 | 28.8 | 1.57 |
| 10±0.40 | 4 | 16 | 30±0.9 | 14 | 36 | 2.46 |
| 13±0.52 | 6.7 | 26.8 | 39±1.2 | 18 | 46.8 | 4.18 |
| 16±0.64 | 10 | 40 | 48±1.4 | 22 | 57.6 | 6.28 |
| 19±0.90 | 14 | 56 | 57±1.6 | 27 | 68.4 | 8.92 |
| 22±1.10 | 19 | 76 | 66±2.0 | 30 | 79.2 | 11.88 |
| 26±1.30 | 21.2 | 84.8 | 78±2.3 | 35 | 96.2 | 16.18 |
| 32±1.60 | 31.5 | 126 | 96±2.9 | 43 | 118 | 24.1 |
