US Type Screw pin Anchor shackle G-209.
It is designed to offer the security of a strong connection with the ease of a quick release pin.
Screw pin anchor shackle is widely used for tie down, towing, hoisting or lifting applications in agricultural, industrial or marine field.
| Technical Notes | Conform to U.S. Fed. Spec. (ASME B30.26) |
| Material | Body: Super Carbon Steel Screw Pin: Alloy Steel / Superior Carbon Steel |
| Safety Factor | 6 : 1 / 4 : 1 |
| Processing | Body: Drop Forged / Quenched and Tempered Screw Pin: Hot/cold forging / Drop Forged / Quenched and Tempered |
| Surface Finished | Body: Hot Dipped Galvanized / Powder Coated / Zinc Plated Screw Pin: Powder Coated / Zinc Plated |
| Size | 3/16” , 1/4” , 5/16” , 3/8” , 7/16” , 1/2” , 5/8” , 3/4” , 7/8” , 1” , 1-1/8” , 1/1/4” , 1-3/8” , 1-1/2” , 1-3/4” , 2” , 2-1/2” |
| Tips | Special specification and marks can be made according to the customer's requirement. |

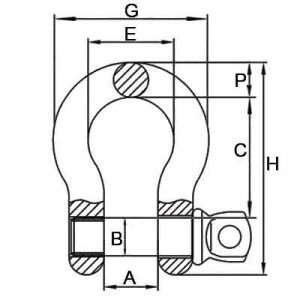

| Size (in) | WLL (ton) | Weight (lbs) | Dimensions (in) | Tolerance +/- | |||||||
| A | B | C | E | G | H | P | C | A | |||
| 3/16 | 1/3 | 0.06 | 0.38 | 0.25 | 0.88 | 0.6 | 0.98 | 1.47 | 0.19 | 0.06 | 0.06 |
| 1/4 | 1/2 | 0.1 | 0.47 | 0.31 | 1.13 | 0.78 | 1.28 | 1.84 | 0.25 | 0.06 | 0.06 |
| 5/16 | 3/4 | 0.19 | 0.53 | 0.38 | 1.22 | 0.84 | 1.47 | 2.09 | 0.31 | 0.06 | 0.06 |
| 3/8 | 1 | 0.31 | 0.66 | 0.44 | 1.44 | 1.03 | 1.78 | 2.49 | 0.38 | 0.13 | 0.06 |
| 7/16 | 1-1/2 | 0.38 | 0.75 | 0.5 | 1.69 | 1.16 | 2.03 | 2.91 | 0.44 | 0.13 | 0.06 |
| 1/2 | 2 | 0.72 | 0.81 | 0.63 | 1.88 | 1.31 | 2.31 | 3.28 | 0.5 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | 1.37 | 1.06 | 0.75 | 2.38 | 1.69 | 2.94 | 4.19 | 0.69 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | 2.35 | 1.25 | 0.88 | 2.81 | 2 | 3.5 | 4.97 | 0.81 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | 3.62 | 1.44 | 1 | 3.31 | 2.28 | 4.03 | 5.83 | 0.97 | 0.25 | 0.06 |
| 1 | 8-1/2 | 5.03 | 1.69 | 1.13 | 3.75 | 2.69 | 4.69 | 6.56 | 1.06 | 0.25 | 0.06 |
| 1-1/8 | 9-1/2 | 7.41 | 1.81 | 1.25 | 4.25 | 2.91 | 5.16 | 7.47 | 1.25 | 0.25 | 0.06 |
| 1/1/4 | 12 | 9.5 | 2.03 | 1.38 | 4.69 | 3.25 | 5.75 | 8.25 | 1.38 | 0.25 | 0.06 |
| 1-3/8 | 13-1/2 | 13.53 | 2.25 | 1.5 | 5.25 | 3.63 | 6.38 | 9.16 | 1.5 | 0.25 | 0.13 |
| 1-1/2 | 17 | 17.2 | 2.38 | 1.63 | 5.75 | 3.88 | 6.88 | 10 | 1.62 | 0.25 | 0.13 |
| 1-3/4 | 25 | 27.78 | 2.88 | 2 | 7 | 5 | 8.86 | 12.34 | 2.25 | 0.25 | 0.13 |
| 2 | 35 | 45 | 3.25 | 2.25 | 7.75 | 5.75 | 9.97 | 13.68 | 2.4 | 0.25 | 0.13 |
| 2-1/2 | 55 | 85.75 | 4.13 | 2.75 | 10.5 | 7.25 | 12.87 | 17.84 | 3.13 | 0.25 | 0.25 |
