G-401 Forged Chain Swivel Eye & Eye.
This type swivel is used to relieve stress caused by twisting and knotting while being pulled taut.
It is ideal for connecting different chains, wire rope or other ropes for lifting or rigging applications.
| Material | Superior Carbon Steel (1045) |
| Processing | Drop Forged + Welded +Heat Treated |
| Surface Finished | Hot Dip Galvanized / Electric Galvanized |
| Safety Factor | 5 : 1 |
| Size | 1/4” , 5/16” , 3/8” , 1/2” , 5/8” , 3/4” |

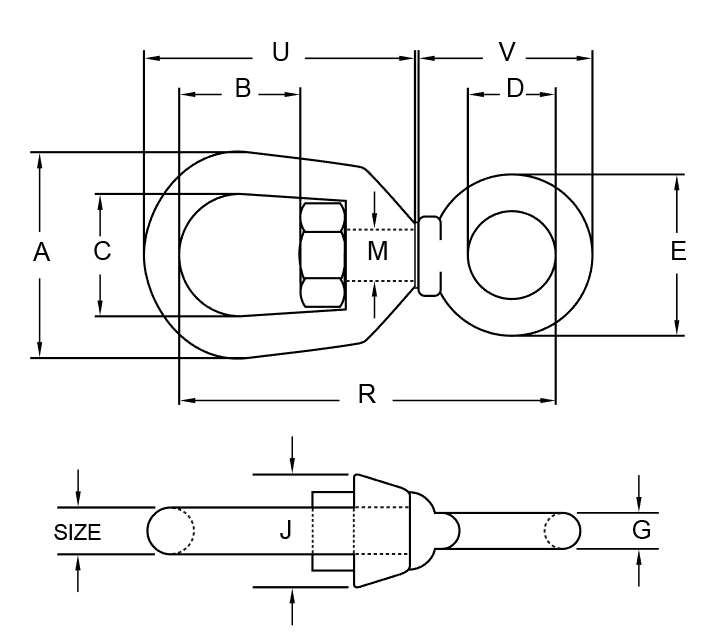

| Size (in) | W.L.L. (lbs) | Weight (lbs) | Dimensions (in) | ||||||||||
| A | B | C | D | E | G | J | M | R | U | V | |||
| 1/4″ | 850 | 0.13 | 1.25 | 0.69 | 0.75 | 0.62 | 1.12 | 0.25 | 0.69 | 0.31 | 2.25 | 1.69 | 1.25 |
| 5/16″ | 1250 | 0.25 | 1.63 | 0.81 | 1 | 0.75 | 1.38 | 0.31 | 0.81 | 0.38 | 2.72 | 2.06 | 1.47 |
| 3/8″ | 2250 | 0.54 | 2 | 0.94 | 1.25 | 1 | 1.75 | 0.38 | 1 | 0.5 | 3.44 | 2.5 | 1.88 |
| 1/2″ | 3600 | 1.12 | 2.5 | 1.31 | 1.5 | 1.25 | 2.25 | 0.5 | 1.31 | 0.63 | 4.25 | 3.19 | 2.44 |
| 5/8″ | 5200 | 2.09 | 3 | 1.56 | 1.75 | 1.5 | 2.75 | 0.62 | 1.5 | 0.75 | 5.13 | 3.88 | 2.94 |
| 3/4″ | 7200 | 3.09 | 3.5 | 1.75 | 2 | 1.75 | 3.25 | 0.75 | 1.88 | 0.88 | 5.78 | 4.94 | 3.46 |
