Stainless Steel U Bolt.
Stainless Steel U Bolt can apply to a wide variety of fastening applications, because the U-shaped design makes it quite versatile.
Stainless Steel U Bolt is manufactured with good quality, high polish and smooth contours.
U Bolt Supply with plate and nuts for easy tightening.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this U bolt is mainly used as deck fittings in the Marine industry.
| Type | U Bolt |
| Material | Stainless steel 316 or 304 |
| Finish | High Polishing |
| Goodness | Rust/Corrosion Resistant |
| Origin | China |

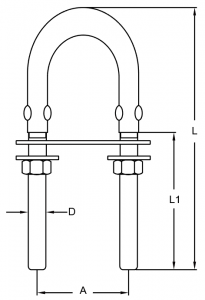

| D (mm) | L (mm) | L1 (mm) | A (mm) | WT (kg) |
| M4 | 64 | 30 | 30 | 0.021 |
| M5 | 80 | 40 | 35 | 0.033 |
| M6 | 80 | 40 | 35 | 0.046 |
| M6 | 90 | 40 | 35 | 0.049 |
| M8 | 60 | 25 | 35 | 0.034 |
| M8 | 80 | 40 | 35 | 0.077 |
| M8 | 90 | 50 | 35 | 0.0835 |
| M8 | 100 | 50 | 35 | 0.088 |
| M10 | 90 | 40 | 50 | 0.098 |
| M10 | 130 | 55 | 50 | 0.196 |
| M12 | 150 | 65 | 60 | 0.295 |
