Stainless Steel Double Wheel Swivel Eye Pulley.
Made with good quality stainless steel AISI 304 or AISI 316, rust/corrosion proof having a long lifetime and durability.
This type pully with a swivel can rotate 360 degrees thus can avoid any twisting whilst in use.
Various sizes are available. Also can customise according to detailed requirements.
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Stamping / Casting / Welding |
| Surface Finished | Highly Polishing / Electric Galvanized |
| Size | 25mm , 32mm , 50mm |
| Tips | Suitable for rope diameters 6mm – 8mm |

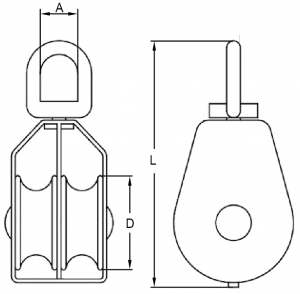

| D (mm) | Wire Φ(mm) | L (mm) | A (mm) | WLL (kg) | WT (kg) |
| 25 | 6 | 83 | 15 | 0.15 | 0.201 |
| 32 | 8 | 97 | 16 | 0.25 | 0.267 |
| 50 | 10 | 127 | 20 | 0.4 | 0.503 |
