Stainless Steel Long Link Chain DIN763.
Stainless Steel Long Link Chain DIN763 is a type of welded long link chain, made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
The chain is made to DIN 763 and EN standard, with links side welded for extra strength and quality tested.
This type long link chain is widely used for engineering, industrial, agricultural and marine applications.
| Technical Notes | Conform To DIN 763 |
| Material | Stainless Steel AISI 316 / AISI 304 |
| Processing | Welded |
| Surfae Finished | Highly Polishing |
| Size | 1.5mm, 2mm, 3mm , 4mm , 5mm , 6mm , 8mm , 10mm , 13mm , 16mm , 20mm |
| Origin | China |

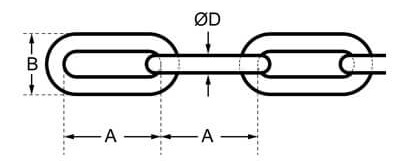

| ØD (mm) | A (mm) | B (mm) | SWL (kg) |
| 1.5 | 12 | 6 | 15 |
| 2 | 22 | 8 | 20 |
| 3 | 26 | 12 | 58 |
| 4 | 32 | 16 | 105 |
| 5 | 35 | 20 | 166 |
| 6 | 42 | 24 | 208 |
| 8 | 52 | 32 | 416 |
| 10 | 65 | 40 | 666 |
| 13 | 82 | 52 | 1050 |
| 16 | 100 | 64 | 2400 |
| 20 | 120 | 75 | 3750 |
