Flexible Swivel Stainless Steel DLF Type.
Stainless Steel Flexible Swivel DLF Type is more flexible than the standard swivel.
It is made of stainless steel 316 or stainless steel 304, which is excellent rust/corrosion resistant.
This type swivel is mainly used in commercial fishing operations, where extra flexibility is required when used in conjunction with ropes, wires and chains etc.
It enables ropes or chains connected to this swivel to remain untwisted.
*Not suitable for lifting or hoisting.
| Material | Stainless Steel AISI 316 or AISI 304 |
| Size | 16mm , 19mm , 22mm , 25mm |
| Safety Factor | 5:1 |
| Processing | Welding / Machining / High Polishing |
| Application | For various marine, fishing, trawling and industrial rigging applications |
| Tips | Not suitable for lifting or hoisting. |

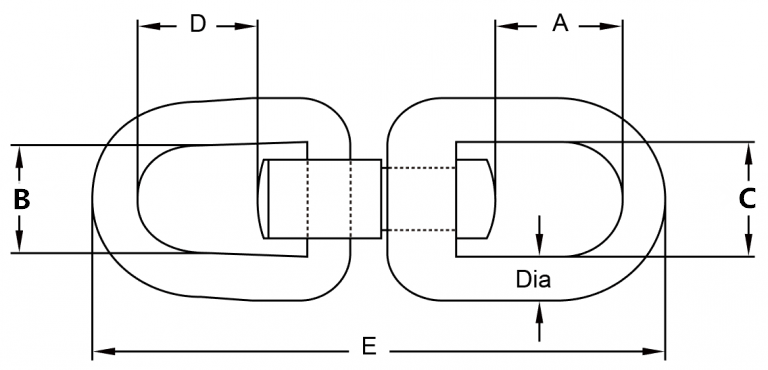

| Size (mm) | WLL (5:1, ton) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (kg) |
| 16mm | 3.2 | 41 | 38 | 55 | 75 | 225 | 1.6 |
| 19mm | 4.7 | 44 | 40 | 55 | 80 | 260 | 2.2 |
| 22mm | 6.3 | 44 | 40 | 60 | 83 | 285 | 3.1 |
| 25mm | 8.3 | 45 | 50 | 68 | 83 | 330 | 5.0 |
